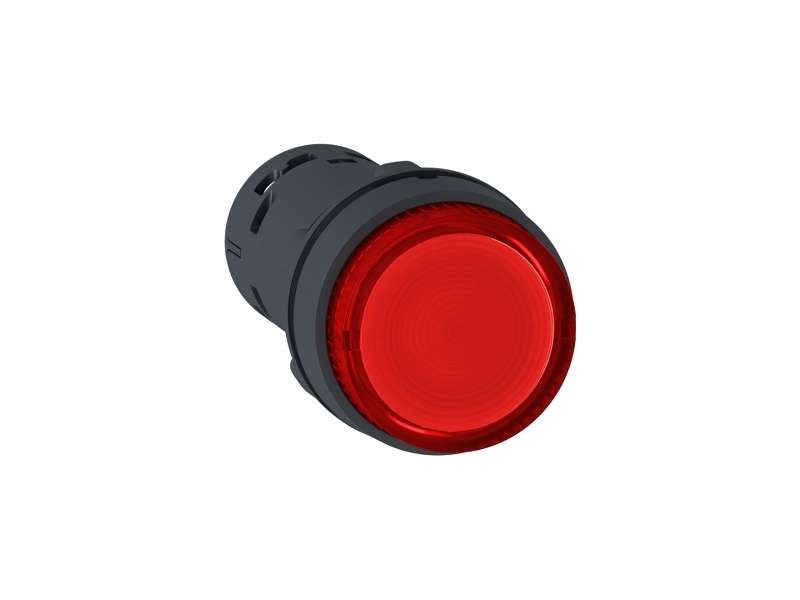

Schneider Electric Svetleći taster - LED - sa povratkom -1NO - crveni - 24V;XB7NW34B1
Harmony XB7, Monolithic illuminated push button, plastic, red, Ø22, integral LED, spring return, 24 V AC/DC, 1 NO...
VAT-exclusive price: 1.183,00 |
VAT-inclusive price: 1.419,60 |
Harmony XB7, Monolithic illuminated push button, plastic, red, Ø22, integral LED, spring return, 24 V AC/DC, 1 NO
| range of product | Harmony XB7 |
|---|---|
| product or component type | Illuminated push-button |
| device short name | XB7 |
| mounting diameter | 22 mm |
| sale per indivisible quantity | 10 |
| IP degree of protection |
IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
| shape of signaling unit head | Round |
| type of operator | Spring return |
| operator profile | Red projecting, unmarked |
| contacts type and composition | 1 NO |
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| light source | LED |
| bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC |
| device presentation | Monolithic product |
| CAD overall width | 29 mm |
|---|---|
| CAD overall height | 29 mm |
| CAD overall depth | 57.5 mm |
| terminals description ISO n°1 | (13-14)NO |
| net weight | 0.023 kg |
| device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1 |
| fixing center |
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| contact operation | Slow-break |
| positive opening | With (only NO) |
| mechanical durability | 300000 cycles |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 |
| shape of screw head |
Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| short-circuit protection | 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current |
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
| electrical durability |
1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| electrical reliability | Λ <= 10exp(-6) at 17 V and 5 mA conforming to EN/IEC 60947-5-4 |
| signalling type | Steady |
| supply voltage limits |
19.2…30 V DC 21.6…26.4 V AC |
| current consumption | 18...27 mA |
| service life | 70000 h at rated voltage and 25 °C |
| protective treatment | TH |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -25…70 °C |
| electrical shock protection class | Class II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 12 conforming to UL 50 E |
| standards |
JIS C8201-5-1 UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C8201-1 |
| product certifications |
GOST CCC |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance |
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration |
| electromagnetic emission | Class B conforming to EN 55011 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 24.0 g |
| Package 1 Height | 6.0 cm |
| Package 1 width | 3.2 cm |
| Package 1 Length | 3.2 cm |
| Warranty | 18 months |
|---|
| range of product | Harmony XB7 |
|---|---|
| product or component type | Illuminated push-button |
| device short name | XB7 |
| mounting diameter | 22 mm |
| sale per indivisible quantity | 10 |
| IP degree of protection |
IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
| shape of signaling unit head | Round |
| type of operator | Spring return |
| operator profile | Red projecting, unmarked |
| contacts type and composition | 1 NO |
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| light source | LED |
| bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC |
| device presentation | Monolithic product |
| CAD overall width | 29 mm |
|---|---|
| CAD overall height | 29 mm |
| CAD overall depth | 57.5 mm |
| terminals description ISO n°1 | (13-14)NO |
| net weight | 0.023 kg |
| device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1 |
| fixing center |
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| contact operation | Slow-break |
| positive opening | With (only NO) |
| mechanical durability | 300000 cycles |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 |
| shape of screw head |
Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| short-circuit protection | 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current |
