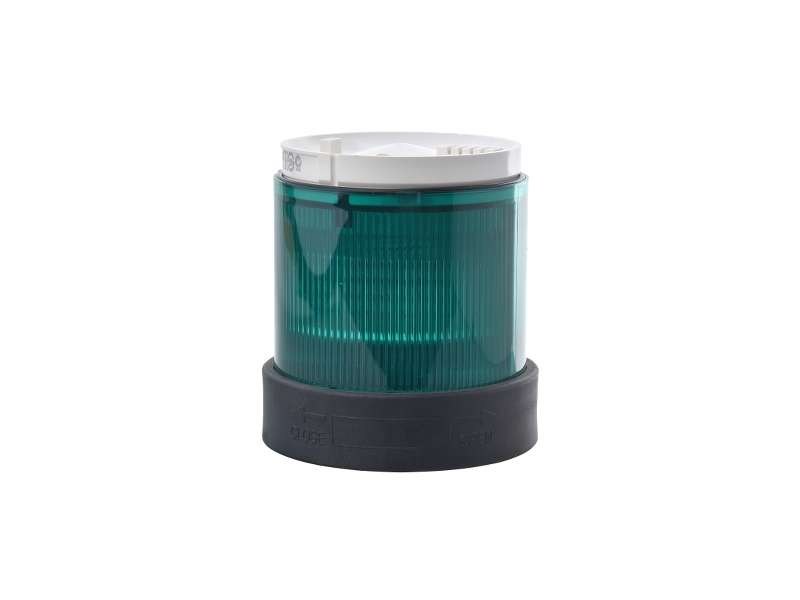

Schneider Electric Svetleća jedinica zelena sočiva 250V 10W + opcije;XVBC33
Harmony XVB, Illuminated unit for modular tower lights, plastic, green, Ø70, steady, bulb or LED not included, 250 V...
VAT-exclusive price: 4.652,00 |
VAT-inclusive price: 5.582,40 |
Harmony XVB, Illuminated unit for modular tower lights, plastic, green, Ø70, steady, bulb or LED not included, 250 V
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Indicator bank |
| beacon or indicator bank unit type | Illuminated unit |
| signalling type | Steady |
| mounting diameter | 70 mm |
| component name | XVBC |
| material | Polycarbonate |
| light source | Bulb not included, green |
| bulb type |
Incandescent with BA 15d base Protected LED |
| [Us] rated supply voltage | <= 250 V |
| assembly style | Customer assembly, up to 5 units |
|---|---|
| maximum power dissipation in W | 7 W |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| CAD overall width | 70 mm |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| pollution degree | 2 |
|---|---|
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation |
-25…50 °C: LED -25…70 °C: incandescent |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 132.0 g |
| Package 1 Height | 9.0 cm |
| Package 1 width | 9.0 cm |
| Package 1 Length | 10.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 288 |
| Package 2 Weight | 52.22 kg |
| Package 2 Height | 77.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Weight | 5.482 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 |
|---|
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Indicator bank |
| beacon or indicator bank unit type | Illuminated unit |
| signalling type | Steady |
| mounting diameter | 70 mm |
| component name | XVBC |
| material | Polycarbonate |
| light source | Bulb not included, green |
| bulb type |
Incandescent with BA 15d base Protected LED |
| [Us] rated supply voltage | <= 250 V |
| assembly style | Customer assembly, up to 5 units |
|---|---|
| maximum power dissipation in W | 7 W |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| CAD overall width | 70 mm |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| pollution degree | 2 |
|---|---|
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation |
-25…50 °C: LED -25…70 °C: incandescent |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 132.0 g |
| Package 1 Height | 9.0 cm |
| Package 1 width | 9.0 cm |
| Package 1 Length | 10.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 288 |
| Package 2 Weight | 52.22 kg |
| Package 2 Height | 77.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 |
