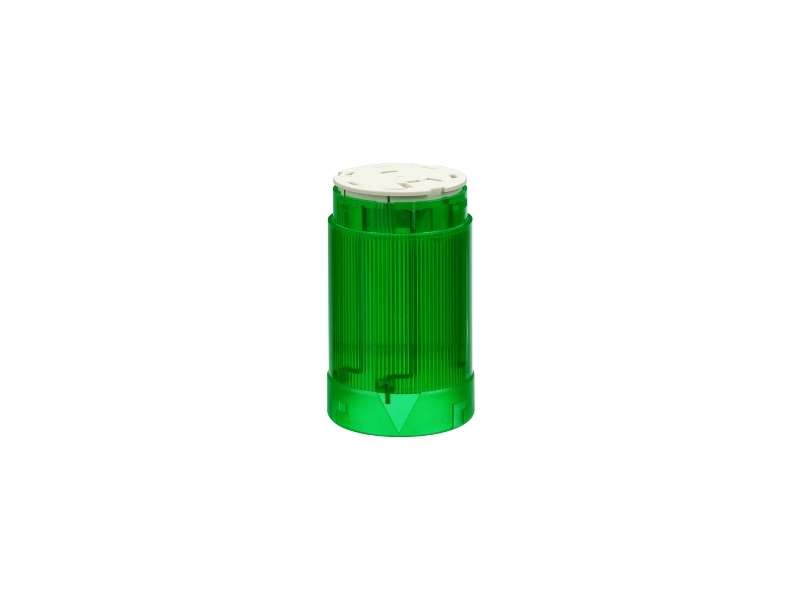

Schneider Electric Svetleća jedinica - Ø 45 - zelena - BA 15d - bez sijalice - <= 230 V AC DC;XVMC33
Harmony XVM, Illuminated unit for modular tower lights, plastic, green, Ø45, for bulb BA 15d, <= 230 V AC/DC...
VAT-exclusive price: 1.739,00 |
VAT-inclusive price: 2.086,80 |
Harmony XVM, Illuminated unit for modular tower lights, plastic, green, Ø45, for bulb BA 15d, <= 230 V AC/DC
| range of product | Harmony XVM |
|---|---|
| product or component type | Indicator bank |
| beacon or indicator bank unit type | Illuminated unit |
| component name | XVM |
| light source | Bulb not included, green |
| bulb type |
Incandescent with BA 15d base Super bright LED Flash discharge tube |
| [Us] rated supply voltage | <= 230 V AC/DC |
| mounting diameter | 45 mm |
|---|---|
| assembly style | Customer assembly |
| maximum power dissipation in W | 5 W |
| connections - terminals | Screw terminals, 1 x 0.325...1 x 1.5 mm² |
| marking | CE |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| luminance | 650 cd/m² |
| CAD overall width | 47 mm |
| CAD overall height | 65 mm |
| CAD overall depth | 47 mm |
| net weight | 0.04 kg |
| product certifications | CCC |
|---|---|
| standards |
EN/IEC 60947-1 EN/IEC 60947-5-1 |
| ambient air temperature for storage | -25…70 °C |
| ambient air temperature for operation | -10…50 °C |
| IP degree of protection |
IP40 any position except vertical position conforming to IEC 60529 IP42 vertical position conforming to IEC 60529 |
| electrical shock protection class |
Class I aluminium tube mounting conforming to IEC 60947-1 Class I aluminium tube mounting conforming to IEC 60947-5-1 Class I aluminium tube mounting conforming to IEC 61140 Class II base mounting conforming to IEC 60947-1 Class II base mounting conforming to IEC 60947-5-1 Class II base mounting conforming to IEC 61140 |
| protective treatment | TC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 45.0 g |
| Package 1 Height | 7.9 cm |
| Package 1 width | 4.8 cm |
| Package 1 Length | 4.8 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 25 |
| Package 2 Weight | 1.487 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
