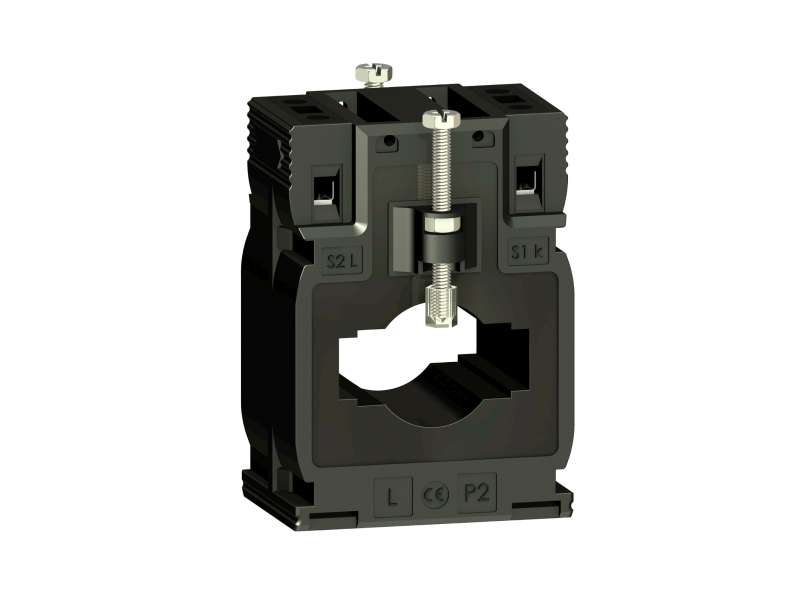

Schneider Electric Strujni transformator trop. DIN šina 400 5 kablovi d. 26 - sabirnice 12x40 15x32; METSECT5MB040
current transformer tropicalised DIN mount 400 5 cables d. 26 - bars 12x40 15x32; METSECT5MB040...
VAT-exclusive price: 5.973,00 |
VAT-inclusive price: 7.167,60 |
current transformer tropicalised DIN mount 400 5 cables d. 26 - bars 12x40 15x32; METSECT5MB040
| Range | PowerLogic |
|---|---|
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| accuracy class |
Class 0.5 at 6 VA Class 1 at 8 VA |
| [In] rated current | 400 A |
| Current transformer type | Tropicalised for busbar and cable |
|---|---|
| Current transformer ratio | 400/5 |
| [Ith] conventional free air thermal current | 24 kA |
| Dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode |
Insulated locking screw By screws Clip-on |
| Mounting support |
Mounting plate Busbar DIN rail |
| width | 60 mm outside: |
| height | 85 mm outside: |
| depth |
43 mm frame: 63 mm total: |
| diameter | 26 mm |
| Net weight | 0.348 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| cable outer diameter | 26 mm |
| Opening of bars |
40.5 x 12.5 32.5 x 15.5 |
| Sealing | Without |
