Schneider Electric Stepenasti grebenasti prekidač - 3P - 45° - 12 A - vijčana montaža ; K1I023QLH
cam stepping switch - 3-pole - 45° - 12 A - screw mounting...
VAT-exclusive price: 3.722,00 |
VAT-inclusive price: 4.466,40 |

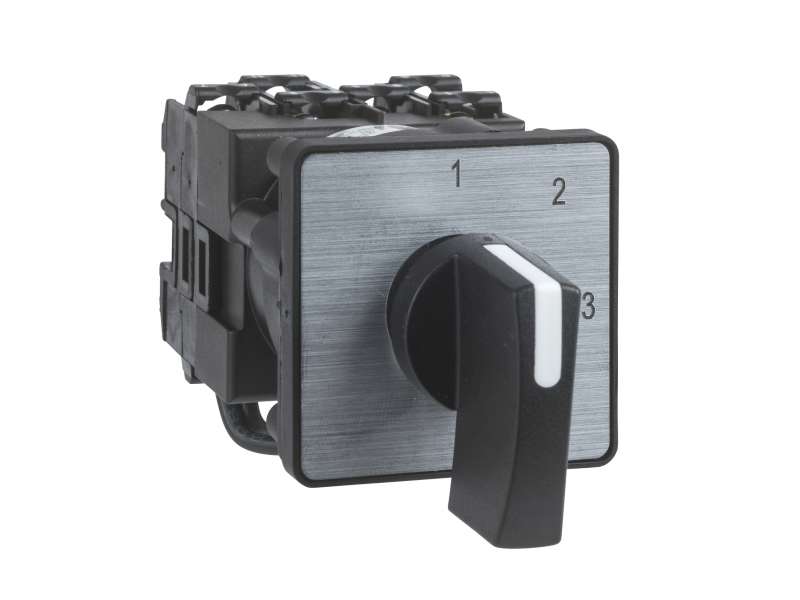

cam stepping switch - 3-pole - 45° - 12 A - screw mounting
| range of product |
Harmony K
|
|
|---|---|---|
| product or component type |
Complete cam switch
|
|
| component name |
K1
|
|
| [Ith] conventional free air thermal current |
12 A
|
|
| mounting location |
Front
|
|
| fixing mode |
Multifixing
|
|
| cam switch head type |
With front plate 45 x 45 mm
|
|
| type of operator |
Black handle, length = 35 mm
|
|
| rotary handle padlocking |
Without
|
|
| presentation of legend |
With metallic legend, 0 - 1 - 2 - 3 black marking
|
|
| cam switch function |
Stepping switch
|
|
| return |
Without
|
|
| off position |
With Off position
|
|
| poles description |
3P
|
|
| switching positions |
Right: 0° - 45° - 90° - 135°
|
|
| IP degree of protection |
IP40 conforming to IEC 529
IP40 conforming to NF C 20-010 |
| number of steps |
3
|
|
|---|---|---|
| switching angle |
45 °
|
|
| [Ui] rated insulation voltage |
690 V (pollution degree 3) conforming to IEC 60947-1
|
|
| [Ithe] conventional enclosed thermal current |
10 A
|
|
| rated operational power in W |
10500 W AC-21, 500...660 V 3 phases conforming to IEC 947-3
1100 W AC-3, 230 V 3 phases conforming to IEC 947-3 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3 600 W AC-3, 230 V 1 phase conforming to IEC 947-3 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3 |
|
| [Ie] rated operational current AC |
1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3 1 A at 500 V AC-15 conforming to IEC 947-5-1 2 A at 400 V AC-15 conforming to IEC 947-5-1 3 A at 230 V AC-15 conforming to IEC 947-5-1 |
|
| electrical durability |
1000000 cycles AC-15
1000000 cycles AC-21 500000 cycles AC-23 500000 cycles AC-3 |
|
| maximum operating rate |
2.5 cyc/mn AC-21
2.5 cyc/mn AC-23 2.5 cyc/mn AC-3 8.333 cyc/mn AC-15 |
|
| short-circuit current |
10000 A
|
|
| short-circuit protection |
16 A cartridge fuse, type gG
|
|
| [Uimp] rated impulse withstand voltage |
4 kV in isolating function
6 kV conforming to IEC 947-1 |
|
| contact operation |
Slow-break
|
|
| positive opening |
With
|
|
| electrical connection |
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm² |
|
| mechanical durability |
1000000 cycles
|
|
| CAD overall width |
45 mm
|
|
| CAD overall height |
45 mm
|
|
| CAD overall depth |
117 mm
|
|
| net weight |
0.215 kg
|
| standards |
EN 60947-3 for power circuit
EN 60947-5-1 for control circuit IEC 60947-3 for power circuit IEC 60947-5-1 for control circuit CENELEC EN 50013 |
|
|---|---|---|
| product certifications |
CSA 240 V 3 hp 3 phases 2 -pole(s)
UL 240 V 0.33 hp 1 phase 2 -pole(s) CSA 240 V 1 hp 1 phase UL 240 V 1 hp 3 phases |
|
| protective treatment |
TC
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| shock resistance |
30 gn conforming to IEC 68-2-27
|
|
| vibration resistance |
5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
|
|
| overvoltage category |
Class II conforming to IEC 536
Class II conforming to NF C 20-030 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
209 g
|
|
| Package 1 Height |
5.2 cm
|
|
| Package 1 width |
5.6 cm
|
|
| Package 1 Length |
16.3 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
