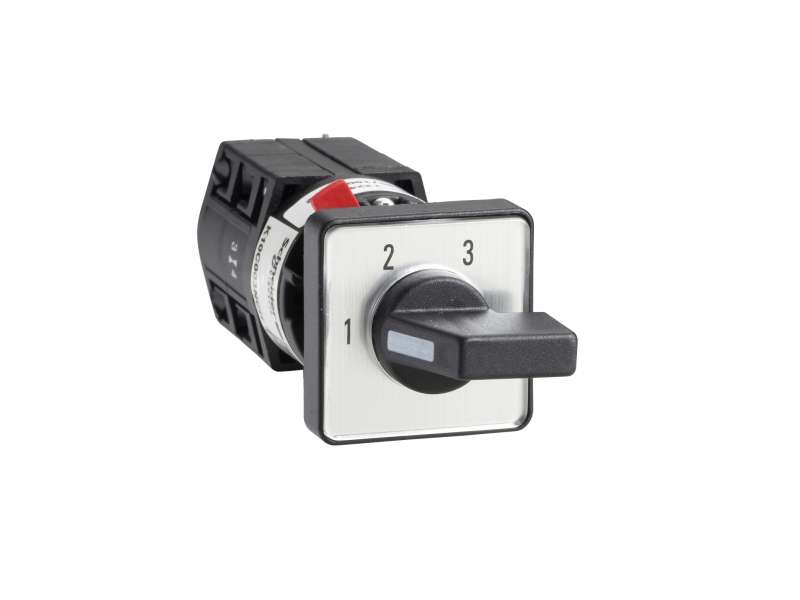

Schneider Electric Stepenasti grebenasti prekidač - 2P - 60° - 10 A - za Ø 16 ili 22 mm;K10F013NCH
Cam stepping switch - 2-pole - 60° - 10 A - for Ø 16 or 22 mm...
VAT-exclusive price: 7.310,00 |
VAT-inclusive price: 8.772,00 |
Cam stepping switch - 2-pole - 60° - 10 A - for Ø 16 or 22 mm
| range of product |
Harmony K
|
|
|---|---|---|
| product or component type |
Complete cam switch
|
|
| component name |
K10
|
|
| [Ith] conventional free air thermal current |
10 A
|
|
| product mounting |
Front mounting
|
|
| fixing mode |
Ø 16 or 22 mm hole
|
|
| cam switch head type |
With front plate 30 x 30 mm
|
|
| type of operator |
Black handle
|
|
| rotary handle padlocking |
Without
|
|
| presentation of legend |
With metallic legend, 1 - 2 - 3 black marking
|
|
| cam switch function |
Stepping switch
|
|
| return |
Without
|
|
| off position |
Without Off position
|
|
| poles description |
2P
|
|
| switching positions |
Right: 270° - 330° - 30°
|
|
| IP degree of protection |
Contact block: IP20
Operating head: IP65 conforming to IEC 60529 |
| number of steps |
3
|
|
|---|---|---|
| switching angle |
60 °
|
|
| [Ui] rated insulation voltage |
440 V (pollution degree 3) conforming to IEC 60947-1
|
|
| rated operational power in W |
370 W AC-23A, 110/120 V 1 phase
750 W AC-23A, 220/240 V 1 phase |
|
| rated power in hp |
0.33 hp at 110/120 V AC, 1 phase
0.75 hp at 220/240 V AC, 1 phase |
|
| [Ie] rated operational current AC |
10 A at 400 V AC-1
10 A at 400 V AC-21A 3 A at 240 V AC-15 6 A at 120 V AC-15 |
|
| [Ie] rated operational current DC |
10 A at 24 V resistive load
0.3 A at 220 V resistive load 0.7 A at 110 V resistive load |
|
| electrical durability |
100000000 cycles
|
|
| short-circuit protection |
10 A cartridge fuse, type gG
|
|
| [Uimp] rated impulse withstand voltage |
4 kV conforming to IEC 60947-1
|
|
| contact operation |
Slow-break
|
|
| electrical connection |
Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²
|
|
| mechanical durability |
1000000 cycles
|
|
| CAD overall width |
30 mm
|
|
| CAD overall height |
30 mm
|
|
| CAD overall depth |
100 mm
|
|
| net weight |
0.055 kg
|
| standards |
CENELEC EN 50013
EN/IEC 60947-3 EN/IEC 60947-5-1 |
|
|---|---|---|
| product certifications |
CULus
|
|
| protective treatment |
TC
|
|
| ambient air temperature for operation |
-20…55 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
77 g
|
|
| Package 1 Height |
4 cm
|
|
-
Harmony K K10F013NCH
