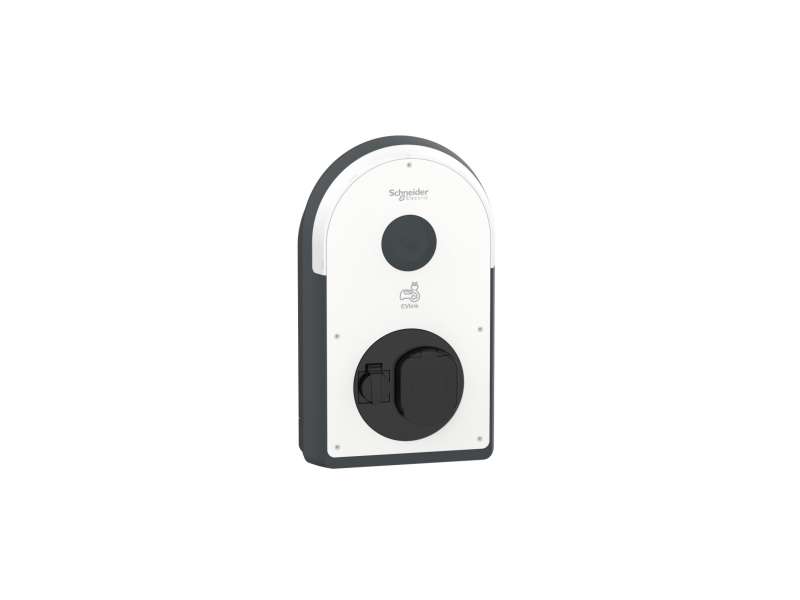

Schneider Electric Stanica za punjenje, EVlink Pro AC/AC Metal, 11kW, 16A, 3P+N, T2S/TF utičnice, RCD B-EV, MNx pomoćni kontakt; EVB3S11N4FB
Charging station, EVlink Pro AC/AC Metal, 11kW, 16A, 3P+N, T2S/TF socket-outlets, RCD B-EV, MNx aux.; EVB3S11N4FB...
Price on request
Charging station, EVlink Pro AC/AC Metal, 11kW, 16A, 3P+N, T2S/TF socket-outlets, RCD B-EV, MNx aux.; EVB3S11N4FB
| Range | EVlink |
|---|---|
| Product name | EVlink Pro AC |
| Product or component type | Charging station |
| device short name | EVB3 |
| Communication network type |
Ethernet Bluetooth 3G/4G modem optional Modbus TCP |
| Connector type | 2 RJ45 for Ethernet LAN connection |
| Communication port protocol | OCPP 1.6 |
| Communication service | JSON smart charging for OCPP 1.6 |
| operating mode |
Clustered architecture Standalone |
| Function available |
Diagnosis capabilities Charge detail records Load management |
| Range compatibility |
EVlink (EcoStruxure EV Charging Expert) EVlink (EVlink Pro AC Metal) EcoStruxure (EcoStruxure EV Advisor) |
|---|---|
| Type of installation |
Indoor Outdoor |
| Provided equipment |
1 residual current device (RCD) integrated 1 MNx auxiliary contact integrated 1 energy meter |
| Accuracy class of energy meter | Class 1 |
| Protection device type | Residual current device (RCD)type B-EV (Electric Vehicle) |
| Poles description |
3P + N for power circuit 1P + N for power circuit |
| Mounting mode |
Wall-mounted Wall-mounted (kit enclosure) Floor-standing (pedestal) Floor-standing (kit enclosure) |
| Mounting support |
Pedestal, to be ordered separately Kit enclosure, to be ordered separately |
| Cable entry |
Bottom entry Top entry Rear entry |
| [Us] rated supply voltage |
380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz |
| Nominal output power | 11 kW 16 A 380...415 V |
| Socket number | 2 |
| Output type |
Front side T2 with shutter socket-outlet / silver plated contacts Front side TF socket-outlet |
| Access control system |
Badge RFID conforming to ISO/IEC 14443 A and B Badge RFID conforming to ISO/IEC 15693 Badge NFC Free access |
| RFID compatible technology |
MIFARE Classic MIFARE Ultralight MIFARE Plus |
| NFC frequency | 13.56 MHz |
| NFC tag type |
Type 1 Type 2 Type 4 Type 5 |
| Earthing system |
TT TN-S TN-C-S Compatible IT with additional isolation transformer on the power supply |
| Number of inputs | 3 |
| Input type |
Binary for power limitation closing contact Binary for delayed charging closing contact Binary for vehicle detection closing contact |
| Control type | can be controlled by remote |
| Local signalling |
1 green LED light strip, function: available 1 blue LED light strip, function: charging 1 red LED light strip, function: fault indication |
| Standards |
EN/IEC 61851-1:ed. 3 EN/IEC 62196-1:ed. 2 EN/IEC 62196-2:ed. 1 EN 61000-6-2:2019 EN 61000-6-3:2007 EN 61000-6-3:2011/A1 IEC 60884-1 NF C 61314 ISO 15118 |
| Product certifications |
EV Ready CE |
| IP degree of protection | IP54 |
| IK degree of protection | IK10 |
| Ambient air temperature for operation | -30…50 °C |
| Ambient air temperature for storage | -40…80 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 2000 m without derating |
| Height | 529 mm |
| Width | 317 mm |
| Depth | 158 mm |
| Product weight | 7.2 kg |
| Colour |
Front face: white (RAL 9003) Housing: dark grey (RAL 7016) Back part: black (RAL 9005) |
