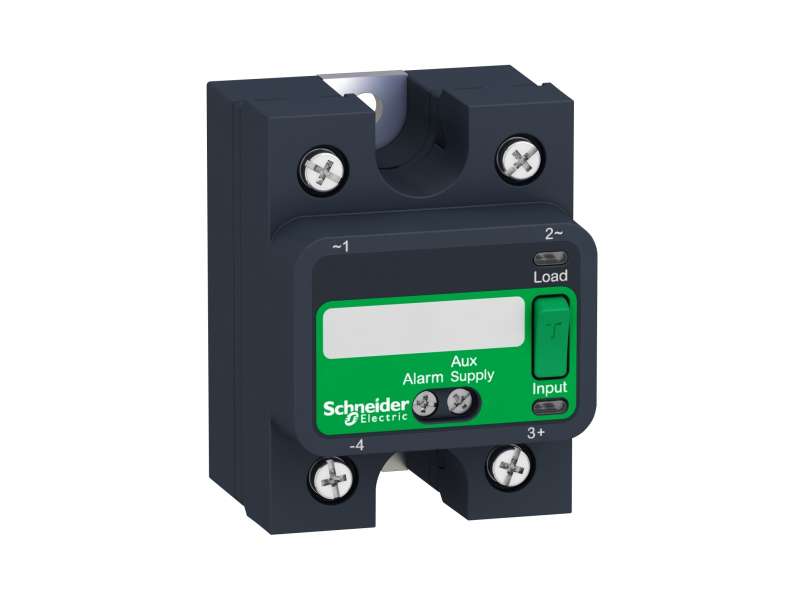

Schneider Electric SSR-montaža na panel-term. podloška-ulaz 4-32VDC,izlaz 24-300 VAC,25A dijagnost.; SSP1A125BDS
SSR-panel mount-thermal pad-input 4-32 VDC,output 24-300 VAC,25A with Diagnostic...
Price on request
SSR-panel mount-thermal pad-input 4-32 VDC,output 24-300 VAC,25A with Diagnostic
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Solid state relay
|
|
| Provided accessory |
Thermal pad
|
|
| device short name |
SSP1
|
|
| mounting support |
Panel
|
|
| Number of phases |
1 phase
|
|
| Contacts type and conifguration |
1 NO
|
|
| [In] rated current |
25 A
|
|
| solid state output type |
SCR output
Zero voltage switching |
| [Uc] control circuit voltage |
4...32 V DC
|
|
|---|---|---|
| minimum switching voltage |
4 V DC turn-on
|
|
| maximum switching voltage |
1 V DC turn-off
|
|
| response time |
0.5 cycle (turn-on)
0.5 cycle (turn-off) |
|
| Input current |
10 mA at 12 V DC
|
|
| output voltage |
24...300 V AC
|
|
| load current |
0.15…25 A
|
|
| Transient overvoltage |
600 V
|
|
| surge current |
250 A for 16.6 ms
|
|
| maximum I²t for fusing |
259 A².s for 8.33 ms at 60 Hz
258 A².s for 10 ms at 50 Hz |
|
| Co-ordination type |
Type 1 - 25 A miniature circuit breaker (MCB) - curve B
Type 2 - 20 A miniature circuit breaker (MCB) - curve B |
|
| maximum leakage current |
1 mA off-state
|
|
| maximum voltage drop |
<1.15 V on-state
|
|
| dV/dt |
500 V/µs off-state at maximum voltage
|
|
| Power factor |
0.5 (with maximum load)
|
|
| Motor controller rating |
0.5 hp 120 V AC
1 hp 240 V AC |
|
| insulation resistance |
1000 MOhm at 500 V DC
|
|
| Maximum capacitance |
10 pF for input/output
|
|
| dielectric strength |
4 kV AC for input/output
4 kV AC for input or output to case |
|
| [Uimp] rated impulse withstand voltage |
6 kV output to case
6 kV input to output |
|
| tightening torque |
1.5...1.7 N.m for input
2...2.2 N.m for output 17.7...19.47 lb.in for output 13.27...15.04 lb.in for input 0.5...0.6 N.m for auxillary terminal 4.4...5.3 lb.in for auxillary terminal |
|
| connections - terminals |
Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input
Screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input Screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output Forked type tag connectors: 9.2 x 4 mm for input Ring lugs: 9.2 x 4 mm for input Forked type tag connectors: 11.7 x 4.5 mm for output Ring lugs: 11.7 x 4.5 mm for output |
|
| Auxiliary/Alarm connection terminal |
Screw-type connector, 0.5...1.5 mm² (AWG 20...AWG 16) with slotted Philips screwdriver
|
|
| Thermal resistance |
0.8 °C/W junction to case
|
|
| LED indicator |
LED, steady, green for ON status for control input/test button actuated
LED, steady, amber for ON status for load LED, flashing, amber for control input to energise load LED, steady, red for open-circuit for control input LED, flashing, red for load cut-off/short-circuit |
|
| Maximum alarm output current |
30 mA at 32 V DC
|
|
| minimum load current |
150 mA
|
|
| IP degree of protection |
IP20
|
|
| electromagnetic compatibility |
Electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2
Electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3 Radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4 Surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5 Surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5 |
|
| safety reliability data |
B10d = 1731395
MTTFd = 1875.9 years |
|
| net weight |
97.1 g
|
|
| device presentation |
Complete product
|
| ambient air temperature for operation |
-40…80 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-40…125 °C
|
|
| pollution degree |
2
|
|
| overvoltage category |
III
|
|
| product certifications |
EAC
REACH RoHS CSA UL CE |
|
| marking |
EAC
UL CSA CE |
|
| standards |
UL 508
EN/IEC 62314 CSA C22.2 No 14-13 EN/IEC 60950-1 |
| Package 1 Weight |
0.109 kg
|
|
|---|---|---|
| Package 1 Height |
4.800 cm
|
|
| Package 1 width |
4.700 cm
|
|
| Package 1 Length |
6.500 cm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
-
Zelio Relays SSP1A125BDS
