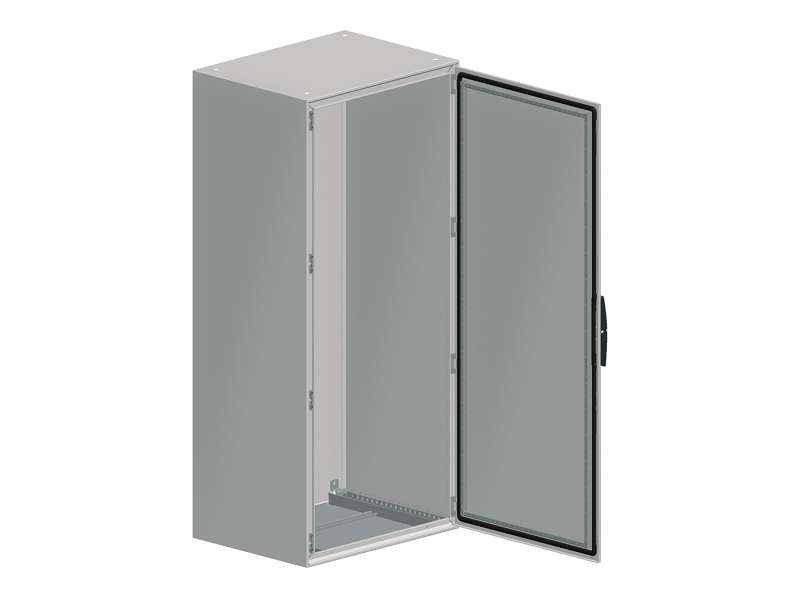

Schneider Electric Spacial SM kompaktni orman sa montažnom pločom - VŠD1600x600x300 mm; NSYSM16630P
Spacial SM compact enclosure with mounting plate - 1600x600x300 mm...
VAT-exclusive price: 114.576,00 |
VAT-inclusive price: 137.491,20 |
Spacial SM compact enclosure with mounting plate - 1600x600x300 mm
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial SM
|
|
| product or component type |
Compact enclosure
|
|
| Application |
Multi-purpose
|
|
| installation accessory type |
Floor-standing
|
|
| device composition |
1 body
1 cable gland plate 1 locking system with handle: door 4 mounting plate bracket 1 mounting plate 1 door |
|
| removable parts |
Door by screws hinge
Mounting plate by screws mounting plate bracket Mounting plate bracket by screws |
|
| enclosure nominal height |
1600 mm
|
|
| enclosure nominal width |
600 mm
|
|
| enclosure nominal depth |
300 mm
|
| number of doors |
Front: 1 door(s)
|
|
|---|---|---|
| door opening side |
Reversible (120 °)
|
|
| door type |
Plain
|
|
| lock type |
4 points lock, handle with 5 mm double bar insert
|
|
| body type |
Front part forming a rigid frame with welded corners
Single piece body with welded rear panel |
|
| mounting plate description |
Plain
|
|
| type of gland plate |
Standard
|
|
| cable entry |
1 entry
|
|
| material |
Mounting plate: galvanised steel
Body: sheet steel Door: sheet steel Hinge: zamak |
|
| surface finish |
Epoxy-polyester powder
|
|
| colour |
Enclosure: grey (RAL 7035)
Handle: black (RAL 9005) |
|
| accessibility for operation |
Front
|
|
| net weight |
85 kg
|
| standards |
IEC 62208
|
|
|---|---|---|
| product certifications |
BV
DNV UL |
|
| IP degree of protection |
IP55 conforming to IEC 60529
|
|
| IK degree of protection |
IK10 conforming to IEC 62262
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
85 kg
|
|
| Package 1 Height |
173 cm
|
|
| Package 1 width |
64.5 cm
|
|
| Package 1 Length |
39 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Spacial SM NSYSM16630P
