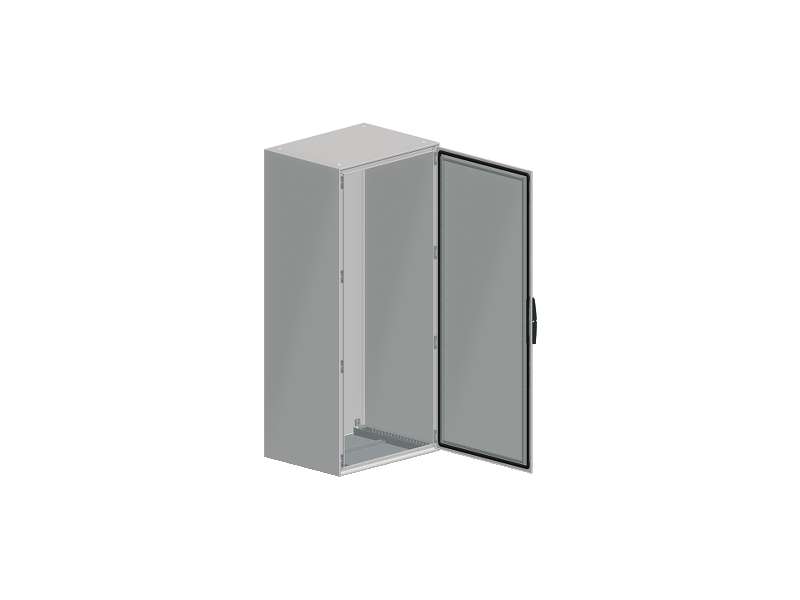

Schneider Electric Spacial SM kompaktni orman sa montažnom pločom - 2000x600x400 mm;NSYSM20640P
Spacial SM compact enclosure with mounting plate - 2000x600x400 mm...
VAT-exclusive price: 140.923,00 |
VAT-inclusive price: 169.107,60 |
Spacial SM compact enclosure with mounting plate - 2000x600x400 mm
| range | Spacial |
|---|---|
| product name | Spacial SM |
| product or component type | Compact enclosure |
| Application | Multi-purpose |
| installation accessory type | Floor-standing |
| device composition |
1 body 1 cable gland plate 1 locking system with handle: door 4 mounting plate bracket 1 mounting plate 1 door |
| removable parts |
Door by screws hinge Mounting plate by screws mounting plate bracket Mounting plate bracket by screws |
| enclosure nominal height | 2000 mm |
| enclosure nominal width | 600 mm |
| enclosure nominal depth | 400 mm |
| number of doors | Front: 1 door(s) |
|---|---|
| door opening side | Reversible (120 °) |
| door type | Plain |
| lock type | 4 points lock, handle with 5 mm double bar insert |
| body type |
Single piece body with welded rear panel Front part forming a rigid frame with welded corners |
| mounting plate description | Plain |
| type of gland plate | Standard |
| cable entry | 1 entry |
| material |
Mounting plate: galvanised steel Body: sheet steel Door: sheet steel Hinge: zamak |
| surface finish | Epoxy-polyester powder |
| colour |
Enclosure: grey (RAL 7035) Handle: black (RAL 9005) |
| accessibility for operation | Front |
| net weight | 112 kg |
| standards | IEC 62208 |
|---|---|
| product certifications |
UL BV DNV |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 116.843 kg |
| Package 1 Height | 213 cm |
| Package 1 width | 84.5 cm |
| Package 1 Length | 48 cm |
| Warranty | 18 months |
|---|
