Schneider Electric Spacial SM kompaktni orman bez montažne ploče - VŠD1600x1000x300 mm; NSYSM1610302D
Spacial SM compact enclosure without mounting plate - 1600x1000x300 mm...
VAT-exclusive price: 140.263,00 |
VAT-inclusive price: 168.315,60 |

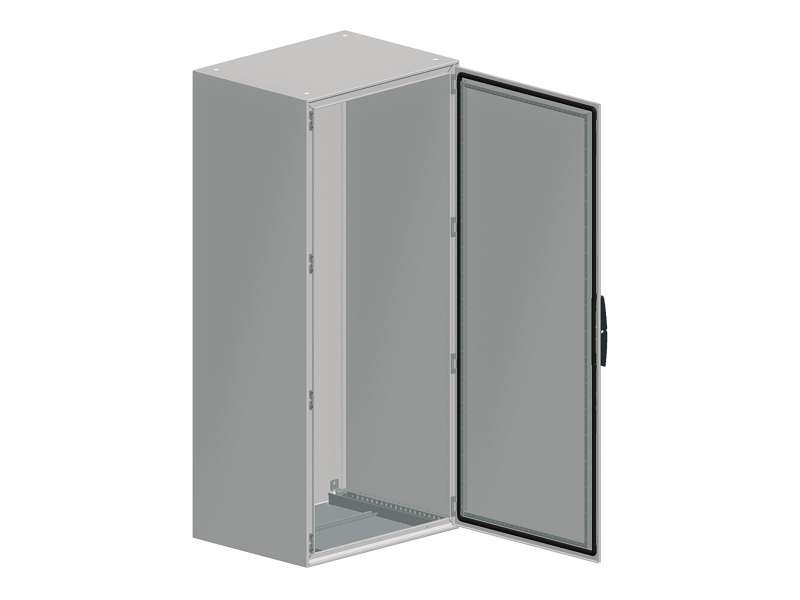

Spacial SM compact enclosure without mounting plate - 1600x1000x300 mm
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial SM
|
|
| product or component type |
Compact enclosure
|
|
| Application |
Multi-purpose
|
|
| installation accessory type |
Floor-standing
|
|
| device composition |
1 body
2 door 1 cable gland plate 1 locking system with handle: door 1 blocking system: left door 4 mounting plate bracket |
|
| removable parts |
Door by screws hinge
Mounting plate bracket by screws |
|
| enclosure nominal height |
1600 mm
|
|
| enclosure nominal width |
1000 mm
|
|
| enclosure nominal depth |
300 mm
|
| number of doors |
Front: 2 door(s)
|
|
|---|---|---|
| door opening side |
Left (120 °)
Right (120 °) |
|
| door type |
Plain
|
|
| lock type |
4 points lock, handle with 5 mm double bar insert
|
|
| body type |
Single piece body with welded rear panel
Front part forming a rigid frame with welded corners |
|
| mounting plate description |
Without mounting plate
|
|
| type of gland plate |
Standard
|
|
| cable entry |
1 entry
|
|
| material |
Body: sheet steel
Door: sheet steel Hinge: zamak |
|
| surface finish |
Epoxy-polyester powder
|
|
| colour |
Enclosure: grey (RAL 7035)
Handle: black (RAL 9005) |
|
| accessibility for operation |
Front
|
|
| net weight |
74 kg
|
| standards |
IEC 62208
|
|
|---|---|---|
| product certifications |
BV
DNV UL |
|
| IP degree of protection |
IP55 conforming to IEC 60529
|
|
| IK degree of protection |
IK10 conforming to IEC 62262
|
| Package 1 Weight |
74.000 kg
|
|
|---|---|---|
| Package 1 Height |
1730.000 mm
|
|
| Package 1 width |
1045.000 mm
|
|
| Package 1 Length |
390.000 mm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Spacial SM NSYSM1610302D
