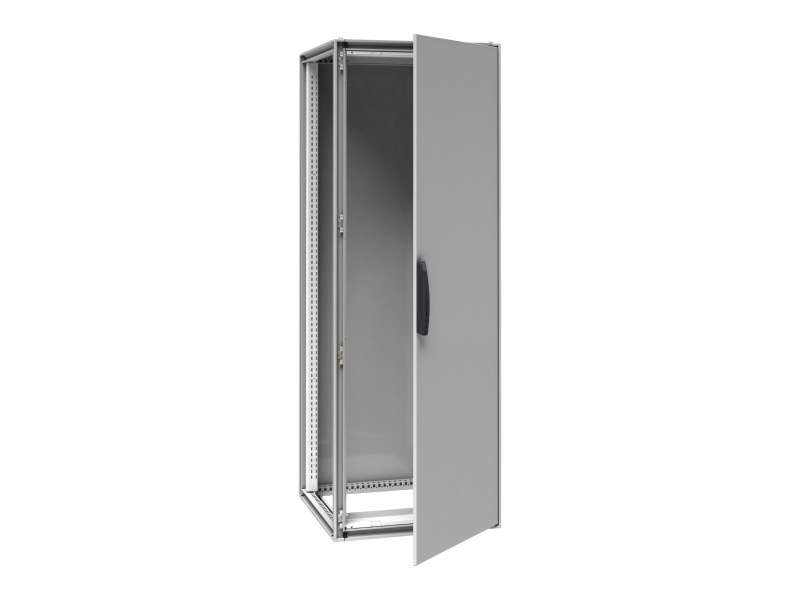

Schneider Electric Spacial SFP 2000x700x800mm, IP 55, RAL7035 za Prisma P sistem instalacije
Spacial SFP 2000x700x800mm, IP 55, RAL7035 for Prisma P system installation...
VAT-exclusive price: 194.615,00 |
VAT-inclusive price: 233.538,00 |
Spacial SFP 2000x700x800mm, IP 55, RAL7035 for Prisma P system installation
| range | Spacial |
|---|---|
| Extended range | Spacial SF |
| Application | Prisma application |
| product or component type | Suitable enclosure |
| enclosure nominal height | 2000 mm |
| enclosure nominal width | 700 mm |
| enclosure nominal depth | 800 mm |
| enclosure mounting | Floor-standing |
| product specific application | Installing the Prisma Plus System P |
| device composition |
2 sliding rails 4 mounting plate bracket 1 structure 1 door 1 locking system with handle: door 1 rear panel 1 roof 2 adaptor upright 2 intermediate upright |
| structure type |
Formed from a single section Vertical uprights joined with top and bottom frames Perforated structure with a pitch of 25 mm Panels and doors built into the structure |
|---|---|
| door type | Plain front |
| number of doors | Front: 1 door(s) |
| door opening side | Reversible (120 °) |
| lock type | 4 points lock, handle with 5 mm double bar insert front door |
| mounting plate description | Without mounting plate |
| type of gland plate | Without gland plate |
| accessibility for operation |
Rear Front Sides of enclosure |
| removable parts |
Door by screws hinge Rear panel by screws Roof by screws Mounting plate bracket by screws Sliding rail by screws Adaptor upright by screws Intermediate upright |
| material |
Frame: galvanised steel Uprights: galvanised steel Door: sheet steel Panels: sheet steel Hinge: zamak Handle: polyamide 6 with 30 % fibre glass |
| surface finish | Epoxy-polyester powder |
| colour |
Enclosure: grey (RAL 7035) Handle: black (RAL 9005) |
| standards | IEC 62208 |
|---|---|
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 113 kg |
| Package 1 Height | 215 cm |
| Package 1 width | 75 cm |
| Package 1 Length | 90 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| Warranty | 18 months |
|---|
-
Spacial SF NSYSFP20780
