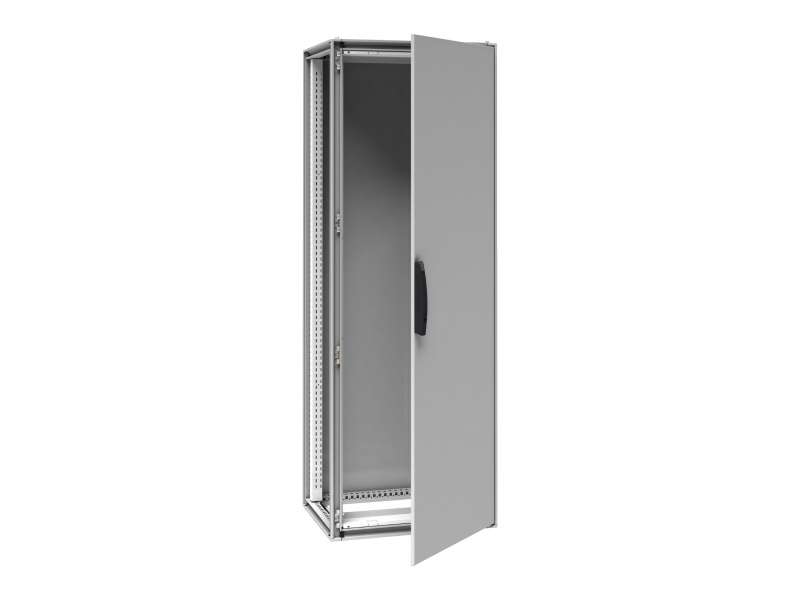

Schneider Electric Spacial SFP 2000x700x600mm, IP 55, RAL7035 za Prisma P sistem instalacije
Spacial SFP 2000x700x600mm, IP 55, RAL7035 for Prisma P system installation...
VAT-exclusive price: 167.620,00 |
VAT-inclusive price: 201.144,00 |
Spacial SFP 2000x700x600mm, IP 55, RAL7035 for Prisma P system installation
range | Spacial |
---|---|
Extended range | Spacial SF |
Application | Prisma application |
product or component type | Suitable enclosure |
enclosure nominal height | 2000 mm |
enclosure nominal width | 700 mm |
enclosure nominal depth | 600 mm |
enclosure mounting | Floor-standing |
product specific application | Installing the Prisma Plus System P |
device composition |
2 sliding rails 4 mounting plate bracket 1 structure 1 door 1 locking system with handle: door 1 rear panel 1 roof 2 adaptor upright 2 intermediate upright |
structure type |
Vertical uprights joined with top and bottom frames Panels and doors built into the structure Perforated structure with a pitch of 25 mm Formed from a single section |
---|---|
door type | Plain front |
number of doors | Front: 1 door(s) |
door opening side | Reversible (120 °) |
lock type | 4 points lock, handle with 5 mm double bar insert front door |
mounting plate description | Without mounting plate |
type of gland plate | Without gland plate |
accessibility for operation |
Front Rear Sides of enclosure |
removable parts |
Door by screws hinge Rear panel by screws Roof by screws Mounting plate bracket by screws Sliding rail by screws Adaptor upright by screws Intermediate upright by screws |
material |
Frame: galvanised steel Uprights: galvanised steel Door: sheet steel Panels: sheet steel Hinge: zamak Handle: polyamide 6 with 30 % fibre glass |
surface finish | Epoxy-polyester powder |
colour |
Enclosure: grey (RAL 7035) Handle: black (RAL 9005) |
standards | IEC 62208 |
---|---|
IP degree of protection | IP55 conforming to IEC 60529 |
IK degree of protection | IK10 conforming to IEC 62262 |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Weight | 107 kg |
Package 1 Height | 214 cm |
Package 1 width | 76 cm |
Package 1 Length | 69 cm |
Sustainable offer status | Green Premium product |
---|---|
REACh Regulation | REACh Declaration |
REACh free of SVHC | Yes |
EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
Mercury free | Yes |
RoHS exemption information | Yes |
China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
Environmental Disclosure | Product Environmental Profile |
Warranty | 18 months |
---|
