Schneider Electric Spacial SF/SM šine za brzu montažu - 65 mm;NSYSQCR6580
Spacial SF/SM quick fixing cross rails - 65 mm...
VAT-exclusive price: 7.536,00 |
VAT-inclusive price: 9.043,20 |

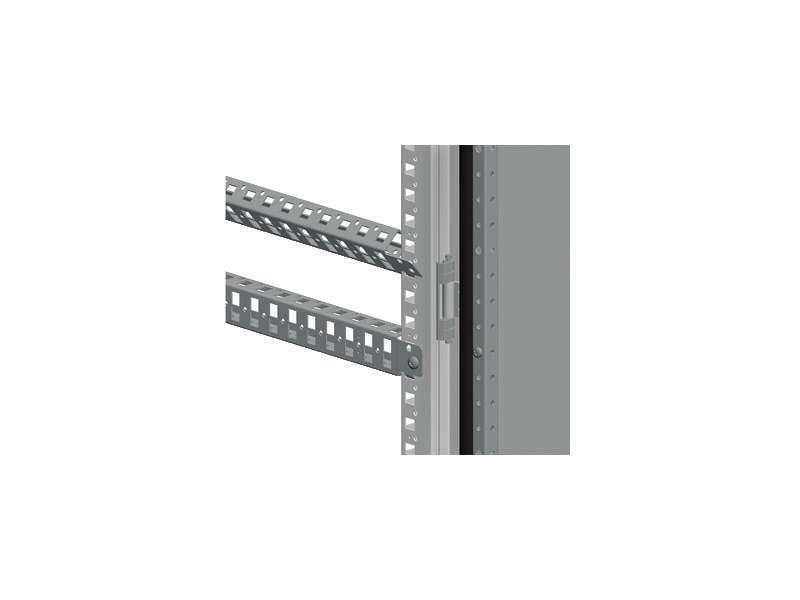

Spacial SF/SM quick fixing cross rails - 65 mm
| range | Spacial |
|---|---|
| accessory / separate part category | Mounting accessory |
| product or component type | Quick cross rails |
| Anwendung | Multi-purpose |
| Nennmaße des Gehäuses | - |
| range compatibility |
Spacial SF Spacial SM Spacial SFX Spacial SMX |
|---|---|
| mounting location |
Between cross rails On structure of enclosure |
| mounting support | Adaptation profile, on SM enclosures |
| device composition |
Fixing elements 2 cross rails |
| quantity per set | Set of 1 |
| material | Steel |
| surface finish | Zinc coated |
| fixing mode |
By screws Clipped - on structure location |
| adjustment | Adjustable with a pitch of 25 mm |
| number of horizontal rows | 2 |
| maximum load | 70 kg |
| height |
800 mm nominal: 710 mm useful: |
| width | 65 mm |
| depth | 27 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.84 kg |
| Package 1 Height | 78 cm |
| Package 1 width | 6.5 cm |
| Package 1 Length | 7.5 cm |
| Warranty | 18 months |
|---|
