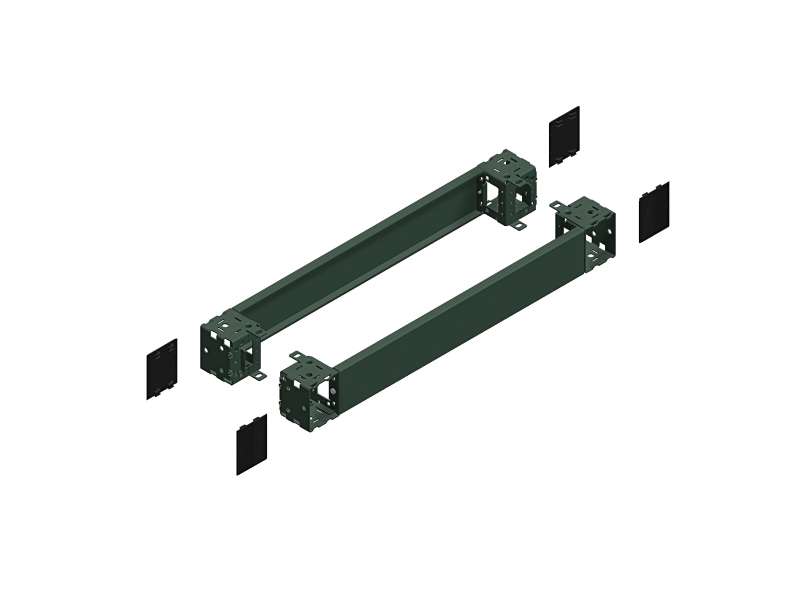

Schneider Electric Spacial SF/SM prednje podnožje - 100x1000 mm

Spacial SF/SM front plinth - 100x1000 mm...

Brand: Schneider Electric
Product Code: NSYSPF10100
Availability: Check availability

VAT-exclusive price: 13.048,00

VAT-inclusive price: 15.657,60

Qnt:

Spacial SF/SM front plinth - 100x1000 mm

Main
range	Spacial
accessory / separate part category	Enclosure accessory
product or component type	Plinth front
Anwendung	Multi-purpose
Nennmaße des Gehäuses	-
device composition	Fixing elements 4 corner cover 1 front panel 1 rear panel 4 corner
range compatibility	Spacial SF Spacial SM Spacial SD Spacial S3D Spacial CRN
mounting support	Plinth side panels

Complementary
fixing mode	By fixing element - on structure location
colour	Grey (RAL 7022)
surface finish	Epoxy-polyester powder
permanent permissible load	1300 kg
height	100 mm
width	1000 mm nominal:

Environment
IP degree of protection	IP30 (complete plinth)
IK degree of protection	IK10

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	5.487 kg
Package 1 Height	11.5 cm
Package 1 width	20 cm
Package 1 Length	102 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
