Schneider Electric Spacial SF/SM poklopac sa izrezima - 150x600 mm - sa šarkama;NSYMUCH156
Spacial SF/SM cut out cover plate - 150x600 mm - hinged...
VAT-exclusive price: 6.809,00 |
VAT-inclusive price: 8.170,80 |

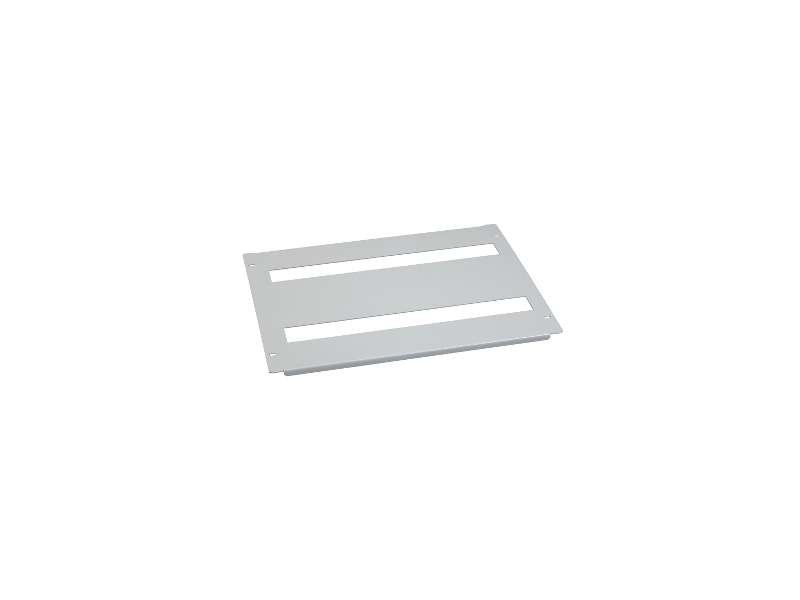

Spacial SF/SM cut out cover plate - 150x600 mm - hinged
| range | Spacial |
|---|---|
| accessory / separate part category | Enclosure accessory |
| product or component type | Cover plate |
| Anwendung | Multi-purpose |
| range compatibility |
Spacial SF Spacial SM |
| Nennmaße des Gehäuses | 150 mmW: 600 mm |
| mounting location | On chassis coupling set |
| device composition |
Fixing elements 1 cover plate |
| quantity per set | Set of 1 |
| material | Steel |
|---|---|
| colour | Grey (RAL 7035) |
| surface finish | Epoxy-polyester powder |
| fixing mode | By screws |
| number of horizontal rows | 1 |
| total number of 18 mm modules | 24 |
| type of front plate | Hinged with cut-out |
| number of cut-out | 1 cut-out |
| height |
150 mm nominal: 149.5 mm real: |
| width |
600 mm nominal: 478 mm fixing centers: 502 mm real: |
| depth | 12 mm real: |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.14 kg |
| Package 1 Height | 1.5 cm |
| Package 1 width | 15 cm |
| Package 1 Length | 60 cm |
| Warranty | 18 months |
|---|
