Schneider Electric Spacial SF/SM bočni panel podnožja - 100x600 mm; NSYSPS6100
Spacial SF/SM side panel plinth - 100x600 mm...
VAT-exclusive price: 6.256,00 |
VAT-inclusive price: 7.507,20 |

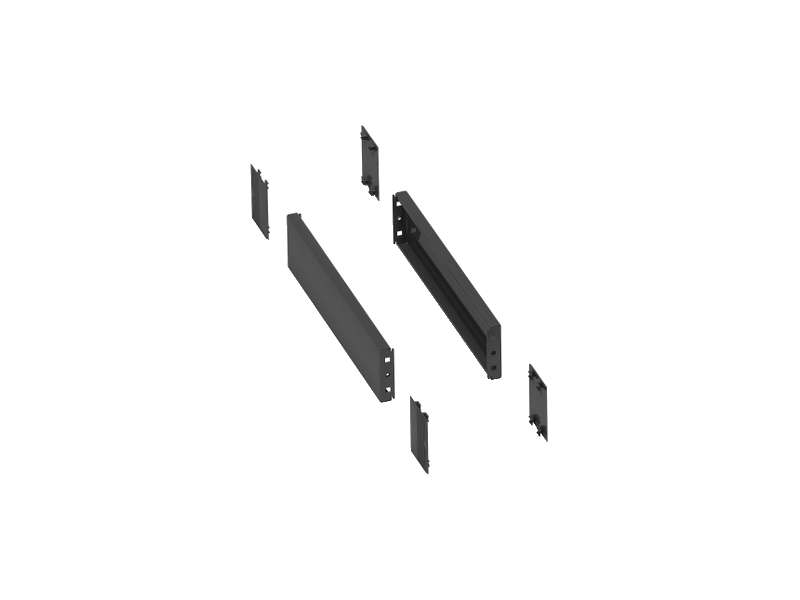

Spacial SF/SM side panel plinth - 100x600 mm
| range | Spacial |
|---|---|
| accessory / separate part category | Enclosure accessory |
| product or component type | Plinth side panel |
| Anwendung |
Compartmentalised application PC application Multi-purpose Electronic application Prisma application |
| Nennmaße des Gehäuses | - |
| device composition |
Fixing elements 4 corner cover 2 side panel |
| range compatibility |
Spacial SF Spacial SM Spacial SFM |
| mounting support | Front plinth |
| fixing mode | By screws |
|---|---|
| colour | Grey (RAL 7022) |
| surface finish | Epoxy-polyester powder |
| height | 100 mm |
| width | 600 mm nominal: |
| IP degree of protection | IP30 (complete plinth) |
|---|---|
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.752 kg |
| Package 1 Height | 6 cm |
| Package 1 width | 12 cm |
| Package 1 Length | 45.5 cm |
| Warranty | 18 months |
|---|
| range | Spacial |
|---|---|
| accessory / separate part category | Enclosure accessory |
| product or component type | Plinth side panel |
| Anwendung |
Compartmentalised application PC application Multi-purpose Electronic application Prisma application |
| Nennmaße des Gehäuses | - |
| device composition |
Fixing elements 4 corner cover 2 side panel |
| range compatibility |
Spacial SF Spacial SM Spacial SFM |
| mounting support | Front plinth |
| fixing mode | By screws |
|---|---|
| colour | Grey (RAL 7022) |
| surface finish | Epoxy-polyester powder |
| height | 100 mm |
| width | 600 mm nominal: |
| IP degree of protection | IP30 (complete plinth) |
|---|---|
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.752 kg |
| Package 1 Height | 6 cm |
| Package 1 width | 12 cm |
| Package 1 Length | 45.5 cm |
| Warranty | 18 months |
|---|
| range | Spacial |
|---|---|
| accessory / separate part category | Enclosure accessory |
| product or component type | Plinth side panel |
| Anwendung |
Compartmentalised application PC application Multi-purpose Electronic application Prisma application |
| Nennmaße des Gehäuses | - |
| device composition |
Fixing elements 4 corner cover 2 side panel |
| range compatibility |
Spacial SF Spacial SM Spacial SFM |
| mounting support | Front plinth |
| fixing mode | By screws |
|---|---|
| colour | Grey (RAL 7022) |
| surface finish | Epoxy-polyester powder |
| height | 100 mm |
| width | 600 mm nominal: |
| IP degree of protection | IP30 (complete plinth) |
|---|---|
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.752 kg |
| Package 1 Height | 6 cm |
| Package 1 width | 12 cm |
| Package 1 Length | 45.5 cm |
| Warranty | 18 months |
|---|
