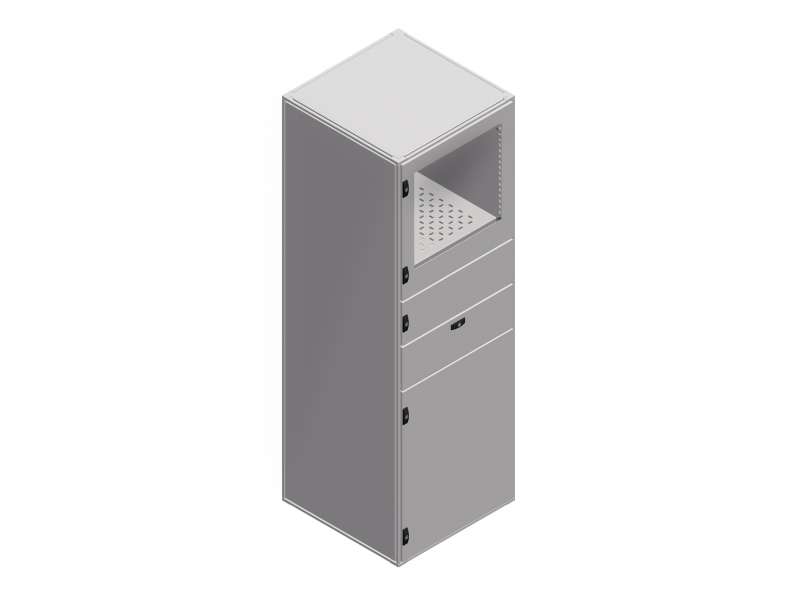

Schneider Electric Spacial SF PC rek orman - sastavljen - 1600x600x800 mm

Spacial SF PC rack enclosure - assembled - 1600x600x800 mm...

Brand: Schneider Electric
Product Code: NSYSF16680PC
Availability: Check availability

VAT-exclusive price: 576.832,00

VAT-inclusive price: 692.198,40

Qnt:

Spacial SF PC rack enclosure - assembled - 1600x600x800 mm

Main
range	Spacial
Extended range	Spacial SF
Application	PC application
product or component type	Suitable enclosure
enclosure nominal height	1600 mm
enclosure nominal width	600 mm
enclosure nominal depth	800 mm
enclosure mounting	Floor-standing
product specific application	Protecting computer equipment
device composition	1 structure 1 roof 2 side panels 1 cable gland plate 1 partial door for keyboard 1 partial door for PC screen 1 partial door for printer support 1 rear door

Complementary
structure type	Perforated structure with a pitch of 25 mm Vertical uprights joined with top and bottom frames Formed from a single section Panels and doors built into the structure
door type	Plain partial front Glazed partial front Plain rear
number of doors	Front: 3 door(s) Rear: 1 door(s)
door opening side	Reversible (120 °)
lock type	Flat escutcheon lock, 5 mm double bar rear door Escutcheon lock, 3 mm double bar front partial doors
mounting plate description	Without mounting plate
type of gland plate	Standard
cable entry	1 entry
number of compartiments	3
accessibility for operation	Rear Sides of enclosure Front
removable parts	Roof by screws internally Side panel by screws internally Door by screws hinge
material	Frame: galvanised steel Uprights: galvanised steel Door: sheet steel Panels: sheet steel Hinge: zamak Escutcheon: polyamide 6 with 30 % fibre glass
surface finish	Epoxy-polyester powder
colour	Enclosure: grey (RAL 7035) Handle: black (RAL 9005)

Environment
standards	IEC 62208
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262 (of transparent door) IK10 conforming to IEC 62262 (of plain door)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	100.7 kg
Package 1 Height	173 cm
Package 1 width	64.5 cm
Package 1 Length	89 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
