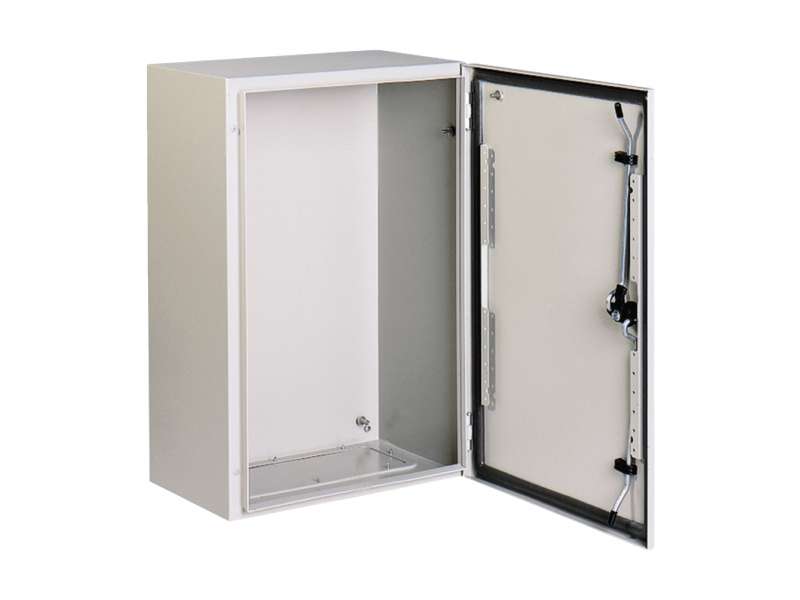

Schneider Electric Spacial S3DEX (ATEX sertifikovano) V1000xŠ800xD300 .IP66 IK10 RAL7035.; NSYS3DEX10830
Schneider Spacial S3DEX (ATEX certified) H1000xW800xD300 .IP66 IK10 RAL7035.; NSYS3DEX10830...
VAT-exclusive price: 80.382,00 |
VAT-inclusive price: 96.458,40 |
Schneider Spacial S3DEX (ATEX certified) H1000xW800xD300 .IP66 IK10 RAL7035.; NSYS3DEX10830
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial S3DEX
|
|
| Application |
ATEX certified application
|
|
| Category |
Compact enclosure
|
|
| enclosure nominal height |
1000 mm
|
|
| enclosure nominal width |
800 mm
|
|
| enclosure nominal depth |
300 mm
|
|
| door type |
Plain
|
|
| mounting plate description |
Without mounting plate
|
|
| type of gland plate |
Without gland plate
|
|
| installation accessory type |
Wall-mounting
|
|
| product destination |
For potentially explosive atmosphere
|
|
| device composition |
1 door
1 lock body with clamped blind nut |
| body type |
Single piece body
Gutter-shaped front rail double sheet thickness |
|
|---|---|---|
| number of doors |
Front face: 1 door(s)
|
|
| door opening side |
Reversible (120 °)
|
|
| lock type |
3 points lock, 3 mm double-bar
|
|
| accessibility for operation |
Front
|
|
| removable parts |
Door by hinges
|
|
| material |
Steel
|
|
| surface finish |
Epoxy-polyester powder
|
|
| colour |
Grey (RAL 7035)
|
|
| standards |
EN 60079-0:2012
EN 60079-7:2007 EN 60079-31:2009 |
|
| marking |
II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC
|
|
| net weight |
37 kg
|
| IP degree of protection |
IP66 conforming to IEC 60529 (enclosures with single door)
|
|
|---|---|---|
| IK degree of protection |
IK10 conforming to IEC 62262
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
37 kg
|
|
| Package 1 Height |
82.5 cm
|
|
| Package 1 width |
35.5 cm
|
|
| Package 1 Length |
102.5 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
-
Spacial CRN NSYS3DEX10830
