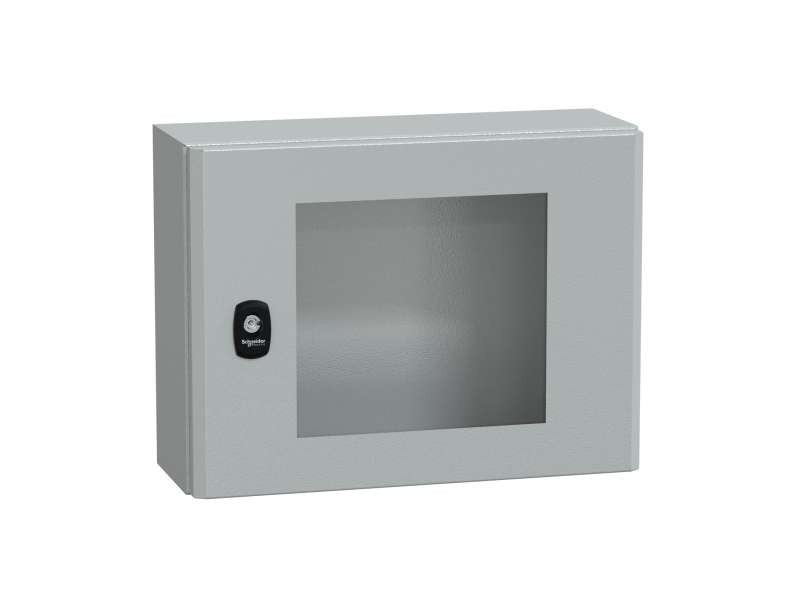

Schneider Electric Spacial S3D prozirna vrata, bez MP V300xŠ400xD150 IP66 IK08 RAL7035.

Spacial S3D tspt door w/o mount.plate. H300xW400xD150 IP66 IK08 RAL7035....

Brand: Schneider Electric
Product Code: NSYS3D3415T
Availability: Check availability

VAT-exclusive price: 18.608,00

VAT-inclusive price: 22.329,60

Qnt:

Spacial S3D tspt door w/o mount.plate. H300xW400xD150 IP66 IK08 RAL7035.

Main
range	Spacial
product name	Spacial S3D
Application	Multi-purpose
Category	Compact enclosure
enclosure nominal height	300 mm
enclosure nominal width	400 mm
enclosure nominal depth	150 mm
door type	Glazed
mounting plate description	Without mounting plate
type of gland plate	Standard
installation accessory type	Wall-mounting
device composition	1 body 1 door 1 lock 1 cable gland plate

Complementary
body type	Single piece body Gutter-shaped front rail double sheet thickness
number of doors	Front face: 1 door(s)
door opening side	Reversible (120 °)
lock type	3 mm double-bar lock
accessibility for operation	Front
removable parts	Door by hinges Cable gland plate by screws
material	Body: steel Door: steel and security glass
surface finish	Epoxy-polyester powder
colour	Grey (RAL 7035)
Standards	IEC 62208
Product certifications	DNV CUL UL GL BV LR
Net weight	5.014 kg

Environment
electromagnetic compatibility	Electromagnetic field immunity test
IK degree of protection	IK08 conforming to IEC 62262
IP degree of protection	IP66 conforming to IEC 60529

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	5.014 kg
Package 1 Height	31.8 cm
Package 1 width	41.3 cm
Package 1 Length	19.8 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
