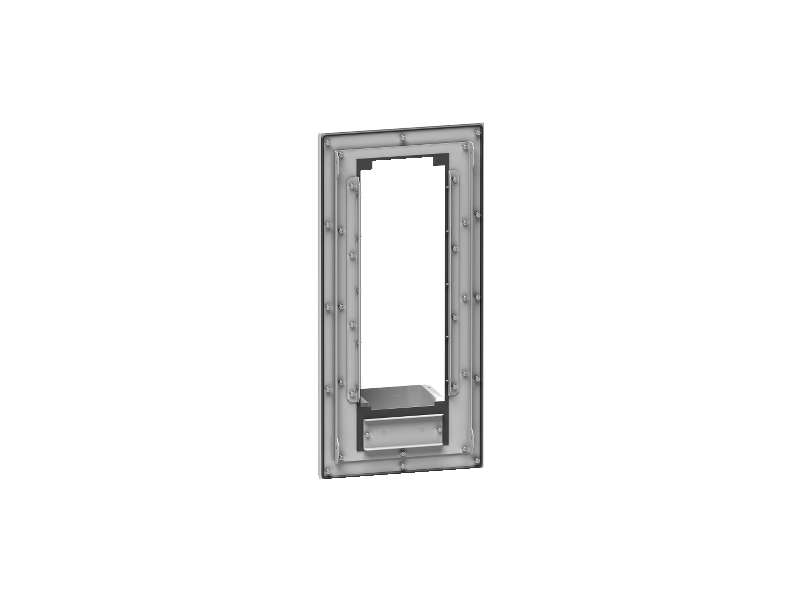

Schneider Electric Spacial - Flush Mounting drive installation kit - Altivar Process size S5 - IP55;NSYPTDS5
Spacial - Flush Mounting drive installation kit - Altivar Process size S5 - IP55...
VAT-exclusive price: 117.350,00 |
VAT-inclusive price: 140.820,00 |
Spacial - Flush Mounting drive installation kit - Altivar Process size S5 - IP55
| range | Spacial |
|---|---|
| product or component type | Drive flush mounting kit |
| accessory category | Mounting and fixing accessory |
| product specific application | Process and utilities |
| range compatibility |
Altivar variable speed drive ATV630 Altivar variable speed drive ATV930 Spacial SF and SM enclosures Altivar variable speed drive ATV340 |
| compatibility for Altivar Process 630-930, size: | 5 |
| motor power kW |
30 kW 220/240 V 37 kW 220/240 V 45 kW 220/240 V 55 kW 380/480 V 75 kW 380/480 V 90 kW 380/480 V |
| mounting location |
Mode 1: back of enclosure on mounting plate Mode 2: inside enclosure |
| kit composition |
1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating. Fixing by screws and nuts 1 x fixing accessories 1 x drilling template 1 x instruction sheet 1 x edge protector profile, plastic. 1 x fan support 1 x cover for fan protection |
| permanent permissible load | 58.5 kg |
|---|---|
| colour | Grey (RAL 7035) |
| height |
975 mm external: 920 mm cut-out: |
| width |
380 mm cut-out: 427 mm external: |
| depth | 205.5 mm wall-enclosure separation: |
| net weight | 11.086 kg |
| services |
Configuration of enclosurepre-drilled back at requested dimensions Factory installation drive flush mounting kit on enclosure |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 11.258 kg |
| Package 1 Height | 15 cm |
| Package 1 width | 45 cm |
| Package 1 Length | 100 cm |
