Schneider Electric Spacial CRNG providna vrata bez mont. ploče V1000xŠ600xD400 IP66 IK08 RAL7035.; NSYCRNG106400T
Spacial CRNG tspt door w/o mount.plate. H1000xW600xD400 IP66 IK08 RAL7035....
VAT-exclusive price: 54.081,00 |
VAT-inclusive price: 64.897,20 |

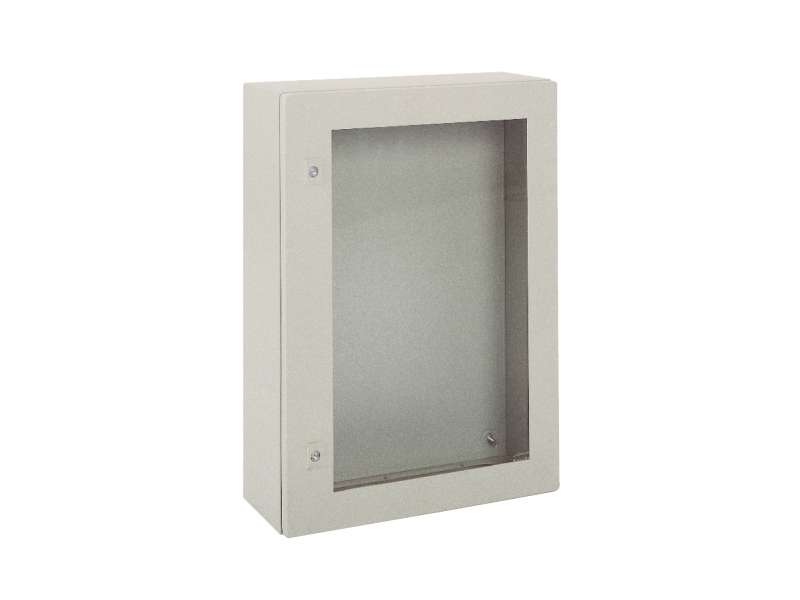

Spacial CRNG tspt door w/o mount.plate. H1000xW600xD400 IP66 IK08 RAL7035.
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial CRNG
|
|
| Application |
Multi-purpose
|
|
| Category |
Compact enclosure
|
|
| enclosure nominal height |
1000 mm
|
|
| enclosure nominal width |
600 mm
|
|
| enclosure nominal depth |
400 mm
|
|
| installation accessory type |
Wall-mounting
|
|
| device composition |
1 body
1 cable gland plate 1 door 1 lock |
|
| door type |
Glazed
|
|
| mounting plate description |
Without mounting plate
|
| body type |
Single piece body
|
|
|---|---|---|
| number of doors |
Front face: 1 door(s)
|
|
| door opening side |
Reversible (120 °)
|
|
| lock type |
3 points lock, 5 mm double-bar
|
|
| type of gland plate |
Standard
|
|
| accessibility for operation |
Front
|
|
| removable parts |
Door by hinges
Cable gland plate by screws |
|
| material |
Body: steel
Door: steel and security glass |
|
| surface finish |
Epoxy-polyester powder
|
|
| colour |
Grey (RAL 7035)
|
|
| standards |
IEC 62208
|
|
| product certifications |
CUL
UL |
|
| net weight |
36.4 kg
|
| IP degree of protection |
IP55 conforming to IEC 60529
|
|
|---|---|---|
| IK degree of protection |
IK08 conforming to IEC 62262
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
36.4 kg
|
|
| Package 1 Height |
102.6 cm
|
|
| Package 1 width |
62.4 cm
|
|
| Package 1 Length |
45.4 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Spacial CRN NSYCRNG106400T
