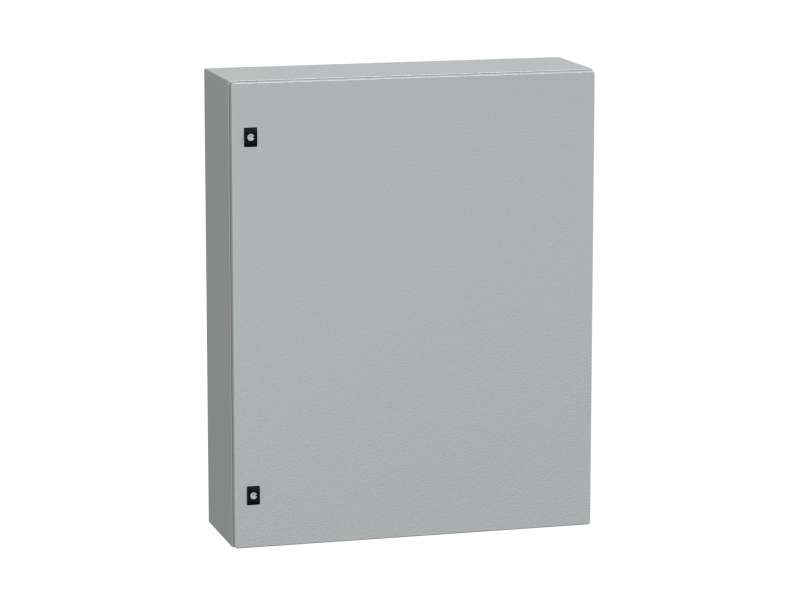

Schneider Electric Spacial CRN ravna vrata sa montažnom pločom V1000xŠ800xD250 IP66 IK10 RAL7035; NSYCRN108250P
Spacial CRN plain door with mount.plate. H1000xW800xD250 IP66 IK10 RAL7035.....
Price on request
Spacial CRN plain door with mount.plate. H1000xW800xD250 IP66 IK10 RAL7035..
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial CRN
|
|
| Application |
Multi-purpose
|
|
| Category |
Compact enclosure
|
|
| enclosure nominal height |
1000 mm
|
|
| enclosure nominal width |
800 mm
|
|
| enclosure nominal depth |
250 mm
|
|
| installation accessory type |
Wall-mounting
|
|
| device composition |
1 body
1 door with lock 1 mounting plate 2 cable gland plate: bottom |
|
| door type |
Plain
|
|
| mounting plate description |
Plain
|
| body type |
Back welded with double profile forming a protected sealed area
Sides made from a single folded section |
|
|---|---|---|
| number of doors |
Front face: 1 door(s)
|
|
| door opening side |
Reversible (120 °)
|
|
| lock type |
3 mm double-bar lock
|
|
| type of gland plate |
Standard
|
|
| accessibility for operation |
Front
|
|
| removable parts |
Door by hinges
Cable gland plate by screws Mounting plate by fixing element |
|
| material |
Enclosure: steel
Mounting plate: galvanised steel |
|
| surface finish |
Enclosure: epoxy-polyester powder
|
|
| colour |
Enclosure: grey (RAL 7035)
|
|
| standards |
IEC 62208
|
|
| product certifications |
CUL
UL |
|
| net weight |
42 kg
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
|---|---|---|
| IK degree of protection |
IK10 conforming to IEC 62262
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
42 kg
|
|
| Package 1 Height |
102 cm
|
|
| Package 1 width |
82 cm
|
|
| Package 1 Length |
27 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Spacial CRN NSYCRN108250P
