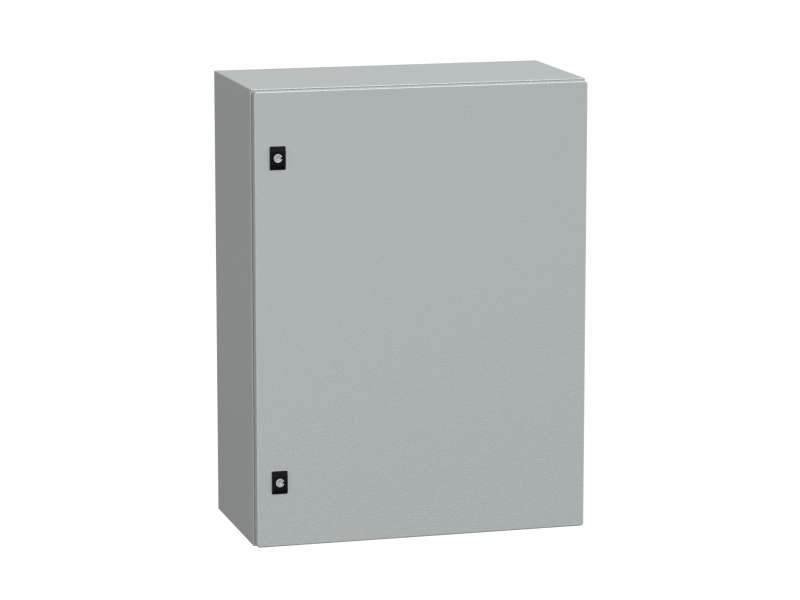

Schneider Electric Spacial CRN ravna vrata bez montažne ploče V800xŠ600xD300 IP66 IK10 RAL7035; NSYCRN86300
Spacial CRN plain door w/o mount.plate. H800xW600xD300 IP66 IK10 RAL7035.....
VAT-exclusive price: 24.863,00 |
VAT-inclusive price: 29.835,60 |
Spacial CRN plain door w/o mount.plate. H800xW600xD300 IP66 IK10 RAL7035..
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial CRN
|
|
| Application |
Multi-purpose
|
|
| Category |
Compact enclosure
|
|
| enclosure nominal height |
800 mm
|
|
| enclosure nominal width |
600 mm
|
|
| enclosure nominal depth |
300 mm
|
|
| installation accessory type |
Wall-mounting
|
|
| device composition |
1 body
1 cable gland plate 1 door 1 lock |
|
| door type |
Plain
|
|
| mounting plate description |
Without mounting plate
|
| body type |
Sides made from a single folded section
Back welded with double profile forming a protected sealed area |
|
|---|---|---|
| number of doors |
Front face: 1 door(s)
|
|
| door opening side |
Reversible (120 °)
|
|
| lock type |
3 mm double-bar lock
|
|
| type of gland plate |
Standard
|
|
| accessibility for operation |
Front
|
|
| removable parts |
Door by hinges
Cable gland plate by screws |
|
| material |
Body: steel
|
|
| surface finish |
Epoxy-polyester powder
|
|
| colour |
Grey (RAL 7035)
|
|
| standards |
IEC 62208
|
|
| product certifications |
UL
CUL |
|
| net weight |
22 kg
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
|---|---|---|
| IK degree of protection |
IK10 conforming to IEC 62262
|
| Package 1 Weight |
22.000 kg
|
|
|---|---|---|
| Package 1 Height |
820.000 mm
|
|
| Package 1 width |
620.000 mm
|
|
| Package 1 Length |
320.000 mm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Spacial CRN NSYCRN86300
