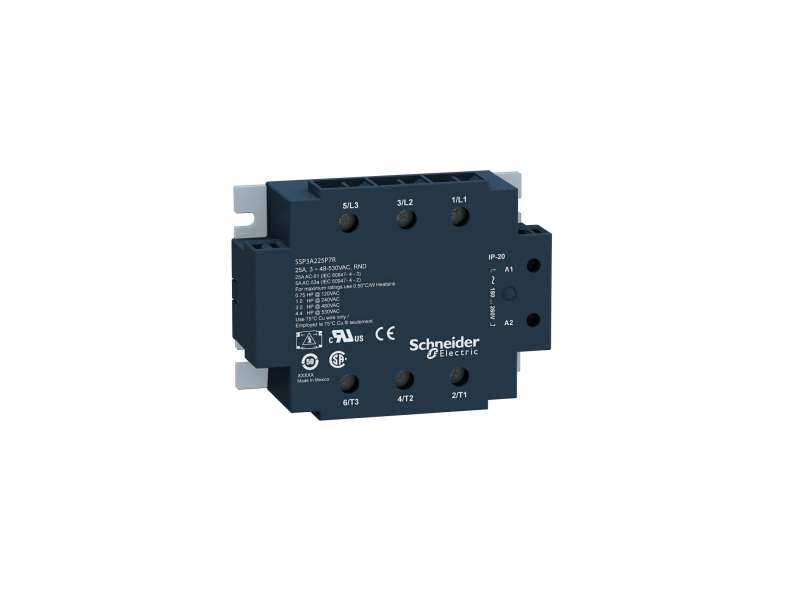

Schneider Electric Solid state relej - za mont. ploču - ulaz 4-32 V DC, izlaz 48-530 V AC, 50A;SSP3A250BDR
Harmony, Solid state relay, 50 A, panel mount, random switching, input 4…32 V DC, output 48…530 V AC...
VAT-exclusive price: 22.157,00 |
VAT-inclusive price: 26.588,40 |
Harmony, Solid state relay, 50 A, panel mount, random switching, input 4…32 V DC, output 48…530 V AC
-
Main range of product Harmony Relayproduct or component type Solid state relay up to 50 Adevice short name SSPmounting support PanelNumber of phases 3 phasesContacts type and conifguration 3 NO[In] rated current 50 Asolid state output type Random voltage switchingoutput switching mode Random voltage switchingComplementary control type Without test button[Uc] control circuit voltage 4...32 V DCminimum switching voltage 4 V DC turn-onmaximum switching voltage 1 V DC turn-offresponse time 8.33 ms (turn-off)
0.1 ms (turn-on)Input current 24…35 mAoutput voltage 48...530 V ACload current 0.1…50 ATransient overvoltage 1200 Vsurge current 715 A for 20 ms
750 A for 16.6 ms
150 A for 1 smaximum I²t for fusing 2520 A².s for 10 ms at 50 Hz
2320 A².s for 8.3 ms at 60 Hzmaximum leakage current 3 mA off-statemaximum voltage drop <1.35 V on-statedV/dt 500 V/µs off-state at maximum voltagePower factor 0.5 (with maximum load)Motor controller rating 1.5 hp 40 °C 120 V AC
3 hp 40 °C 240 V AC
7.5 hp 40 °C 480 V AC
8.8 hp 40 °C 530 V ACmotor power kW 1.11 kW at 40 °C 120 V AC
2.22 kW at 40 °C 240 V AC
5.55 kW at 40 °C 480 V AC
6.47 kW at 40 °C 530 V ACinsulation resistance >= 1000 MOhm at 500 V DCMaximum capacitance 8 pF for input/outputdielectric strength 4 kV AC for input/output
4 kV AC for input or output to casetightening torque 0.9...1.1 N.m for input
1.7...2.2 N.m for outputconnections - terminals Screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input
Screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for outputThermal resistance 0.12 °C/WLED indicator LED, green for inputIP degree of protection IP20net weight 0.24 kgwidth 101.3 mmheight 79.7 mmdepth 35.4 mmdevice presentation Complete productEnvironment flame retardance V0 conforming to UL 94ambient air temperature for operation -40…80 °Cambient air temperature for storage -40…125 °C
-
Zelio Relays SSP3A250BDR
