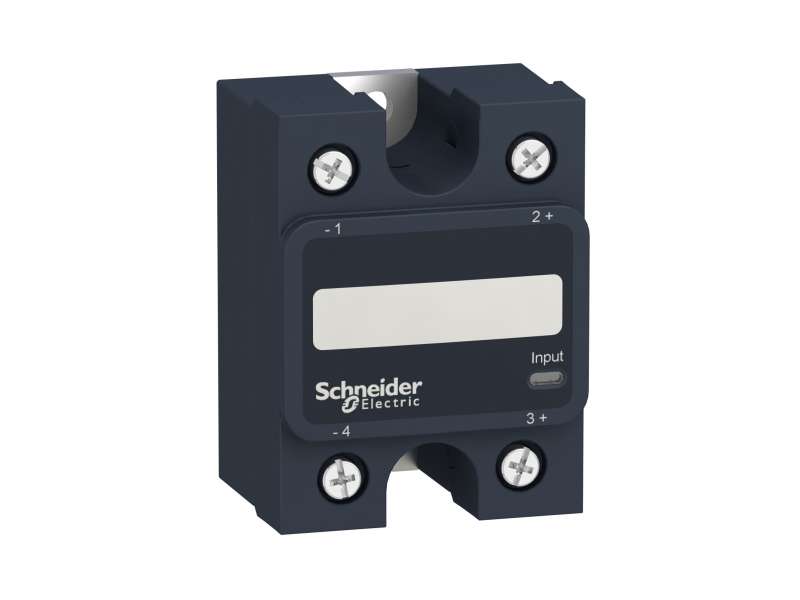

Schneider Electric Solid state relej - za mont. ploču - ulaz 3.5-32V DC, izlaz 1-150 V DC, 12A;SSP1D412BD
Harmony, Solid state relay, 12 A, panel mount, DC switching, input 3.5...32 V DC, output 1…150 V DC...
VAT-exclusive price: 5.871,00 |
VAT-inclusive price: 7.045,20 |
Harmony, Solid state relay, 12 A, panel mount, DC switching, input 3.5...32 V DC, output 1…150 V DC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Solid state relay up to 20 A
|
|
| device short name |
SSP1
|
|
| mounting support |
Panel
|
|
| Number of phases |
1 phase
|
|
| Contacts type and conifguration |
1 NO
|
|
| [In] rated current |
12 A
|
|
| solid state output type |
DC switching
Mosfet output |
|
| output switching mode |
DC switching
|
| [Uc] control circuit voltage |
3.5...32 V DC
|
|
|---|---|---|
| minimum switching voltage |
3.5 V DC turn-on
|
|
| maximum switching voltage |
1 V DC turn-off
|
|
| response time |
0.1 ms (turn-on)
0.1 ms (turn-off) |
|
| Input current |
10…15 mA
|
|
| output voltage |
1...150 V DC
|
|
| load current |
0.001…12 A
|
|
| surge current |
31 A for 10 ms
|
|
| Co-ordination type |
Type 1 - 10 A miniature circuit breaker (MCB) - curve B
Type 2 - 6 A miniature circuit breaker (MCB) - curve B |
|
| maximum leakage current |
0.3 mA off-state
|
|
| maximum voltage drop |
<2.8 V on-state
|
|
| insulation resistance |
1000 MOhm at 500 V DC
|
|
| Maximum capacitance |
50 pF for input/output
|
|
| dielectric strength |
2.5 kV AC for input/output
2.5 kV AC for input or output to case |
|
| [Uimp] rated impulse withstand voltage |
2.5 kV output to case
|
|
| tightening torque |
1.5...1.7 N.m for input
2...2.2 N.m for output |
|
| connections - terminals |
Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input
Screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input Screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output Forked type tag connectors: 9.2 x 4 mm for input Ring lugs: 9.2 x 4 mm for input Forked type tag connectors: 11.7 x 4.5 mm for output Ring lugs: 11.7 x 4.5 mm for output |
|
| Thermal resistance |
0.71 °C/W junction to case
|
|
| LED indicator |
LED, green for input
|
|
| IP degree of protection |
IP20
|
|
| safety reliability data |
B10d = 1731395
MTTFd = 1875.9 years |
|
| net weight |
89.2 g
|
|
| device presentation |
Complete product
|
| ambient air temperature for operation |
-40…80 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-40…125 °C
|
|
| pollution degree |
2
|
|
| overvoltage category |
III
|
|
| product certifications |
CE
UL CSA EAC |
|
| marking |
CSA
UL CE EAC |
|
| standards |
EN/IEC 62314
UL 508 CSA C22.2 No 14-13 EN/IEC 60950-1 |
| Package 1 Weight |
0.096 kg
|
|
|---|---|---|
| Package 1 Height |
0.380 dm
|
|
| Package 1 width |
0.480 dm
|
|
| Package 1 Length |
0.650 dm
|
-
Zelio Relays SSP1D412BD
