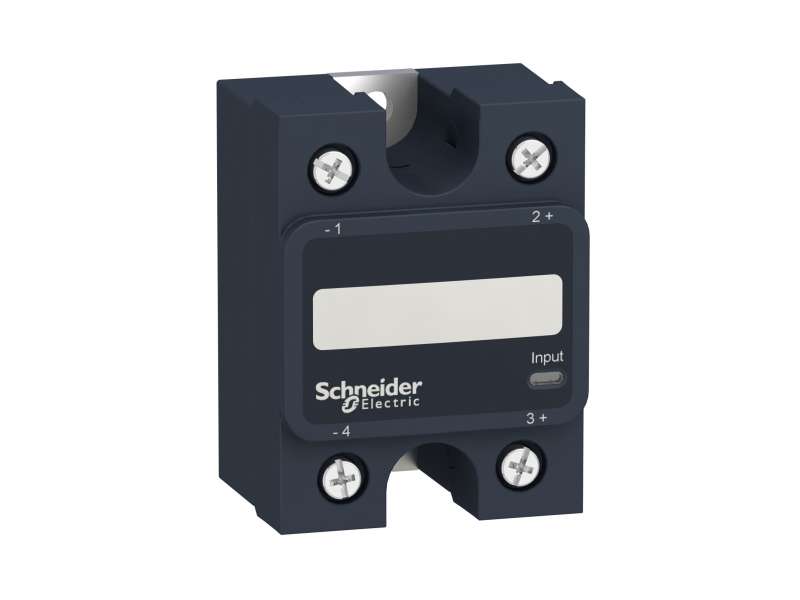

Schneider Electric Solid state relej -za mont. ploču-term.ploča-ulaz 3.5-32VDC, izlaz 1-150VDC,25 A;SSP1D425BDT
Harmony, Solid state relay, 25 A, panel mount, DC switching, thermal pad, input 3.5...32 V DC, output 1…150 V DC; 1 NO...
VAT-exclusive price: 6.482,00 |
VAT-inclusive price: 7.778,40 |
Harmony, Solid state relay, 25 A, panel mount, DC switching, thermal pad, input 3.5...32 V DC, output 1…150 V DC; 1 NO
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Solid state relay up to 30 A
|
|
| Provided accessory |
Thermal pad
|
|
| device short name |
SSP1
|
|
| mounting support |
Panel
|
|
| Number of phases |
1 phase
|
|
| Contacts type and conifguration |
1 NO
|
|
| [In] rated current |
25 A
|
|
| solid state output type |
Mosfet output
DC switching |
|
| output switching mode |
DC switching
|
| [Uc] control circuit voltage |
3.5...32 V DC
|
|
|---|---|---|
| minimum switching voltage |
3.5 V DC turn-on
|
|
| maximum switching voltage |
1 V DC turn-off
|
|
| response time |
0.1 ms (turn-on)
0.1 ms (turn-off) |
|
| Input current |
10…15 mA
|
|
| output voltage |
1...150 V DC
|
|
| load current |
0.001…25 A
|
|
| surge current |
106 A for 10 ms
|
|
| Co-ordination type |
Type 1 - 25 A miniature circuit breaker (MCB) - curve B
Type 2 - 13 A miniature circuit breaker (MCB) - curve B |
|
| maximum leakage current |
0.3 mA off-state
|
|
| maximum voltage drop |
<2.1 V on-state
|
|
| insulation resistance |
1000 MOhm at 500 V DC
|
|
| Maximum capacitance |
50 pF for input/output
|
|
| dielectric strength |
2.5 kV AC for input/output
2.5 kV AC for input or output to case |
|
| [Uimp] rated impulse withstand voltage |
2.5 kV output to case
|
|
| tightening torque |
1.5...1.7 N.m for input
2...2.2 N.m for output |
|
| connections - terminals |
Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input
Screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input Screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output Forked type tag connectors: 9.2 x 4 mm for input Ring lugs: 9.2 x 4 mm for input Forked type tag connectors: 11.7 x 4.5 mm for output Ring lugs: 11.7 x 4.5 mm for output |
|
| Thermal resistance |
0.22 °C/W junction to case
|
|
| thermal pad impedance |
0.48 °C-in²/W at 25 psi
|
|
| LED indicator |
LED, green for input
|
|
| IP degree of protection |
IP20
|
|
| safety reliability data |
B10d = 1731395
MTTFd = 1875.9 years |
|
| net weight |
89.2 g
|
|
| device presentation |
Complete product
|
| ambient air temperature for operation |
-40…80 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-40…125 °C
|
|
| pollution degree |
2
|
|
| overvoltage category |
III
|
|
| product certifications |
EAC
CE UL CSA |
|
| marking |
UL
CE EAC CSA |
|
| standards |
CSA C22.2 No 14-13
EN/IEC 62314 EN/IEC 60950-1 UL 508 |
| Package 1 Weight |
0.102 kg
|
|
|---|---|---|
| Package 1 Height |
0.380 dm
|
-
Zelio Relays SSP1D425BDT
