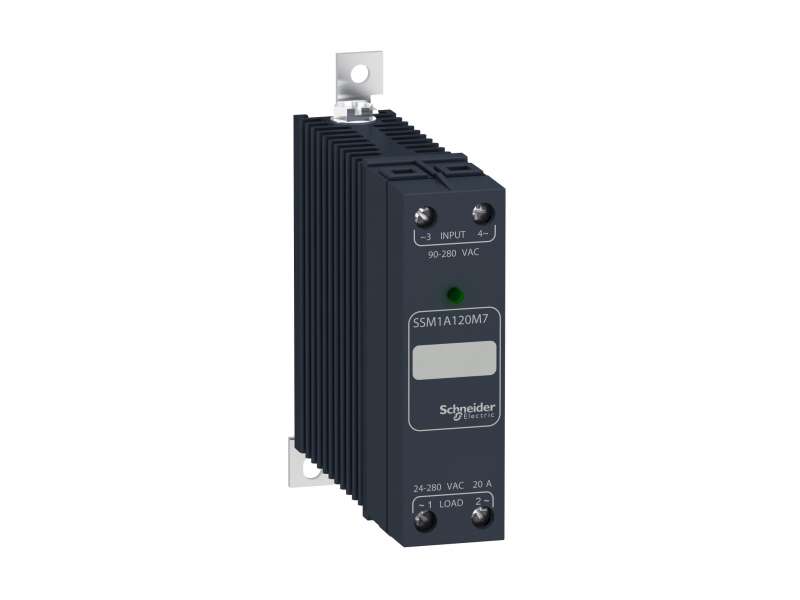

Schneider Electric Solid state relej - za DIN šinu - ulaz 4-32 V DC, izlaz 24-280 V AC, 20A ; SSM1A120BD
solid state relay - DIN rail mount - input 4-32Vdc, output 24-280Vac, 20A...
VAT-exclusive price: 7.475,00 |
VAT-inclusive price: 8.970,00 |
solid state relay - DIN rail mount - input 4-32Vdc, output 24-280Vac, 20A
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Solid state relay
|
|
| device short name |
SSM1
|
|
| Number of phases |
1 phase
|
| mounting support |
Symmetrical DIN rail
|
|
|---|---|---|
| [In] rated current |
20 A
|
|
| output voltage |
24...280 V AC
|
|
| [Uc] control circuit voltage |
4...32 V DC
|
|
| contacts type and configuration |
1 NO
|
|
| tightening torque |
0.6...0.7 N.m for input
1.36...1.7 N.m for output |
|
| connections - terminals |
Screw terminals: 1 x 0.2...1 x 5.3 mm², (AWG 24...AWG 10) for input
Screw terminals: 1 x 0.2...1 x 5.3 mm², (AWG 24...AWG 10) for output |
|
| maximum capacitance |
8 pF for input/output
|
|
| insulation resistance |
1000 MOhm at 500 V DC
|
|
| local signalling |
LED (green)input status:
|
|
| switching voltage |
4 V DC turn-on
1 V DC turn-off |
|
| input current |
8…12 mA
|
|
| solid state output type |
SCR output
Zero voltage switching |
|
| load current |
0.15…20 A
|
|
| transient overvoltage |
600 V
|
|
| surge current |
250 A for 16.6 ms
|
|
| maximum voltage drop |
<1.6 V on-state
|
|
| maximum I²t for fusing |
260 A².s for 8.3 ms
|
|
| maximum leakage current |
10 mA off-state
|
|
| dV/dt |
500 V/µs off-state at maximum voltage
|
|
| response time |
0.5 cycle (turn-on)
0.5 cycle (turn-off) |
|
| overvoltage category |
III
|
|
| net weight |
0.28 kg
|
| dielectric strength |
4 kV AC for input/output
4 kV AC for input or output to case |
|
|---|---|---|
| pollution degree |
2
|
|
| standards |
CSA C22.2 No 14
IEC 60950-1 UL 508 |
|
| product certifications |
EAC
UL CSA |
|
| marking |
CSA
UL CE EAC |
|
| IP degree of protection |
IP20
|
|
| ambient air temperature for operation |
-40…80 °C
|
|
| ambient air temperature for storage |
-40…125 °C
|
| Package 1 Weight |
0.298 kg
|
|
|---|---|---|
| Package 1 Height |
0.320 dm
|
|
| Package 1 width |
1.100 dm
|
|
| Package 1 Length |
1.100 dm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
-
Zelio Relays SSM1A120BD
