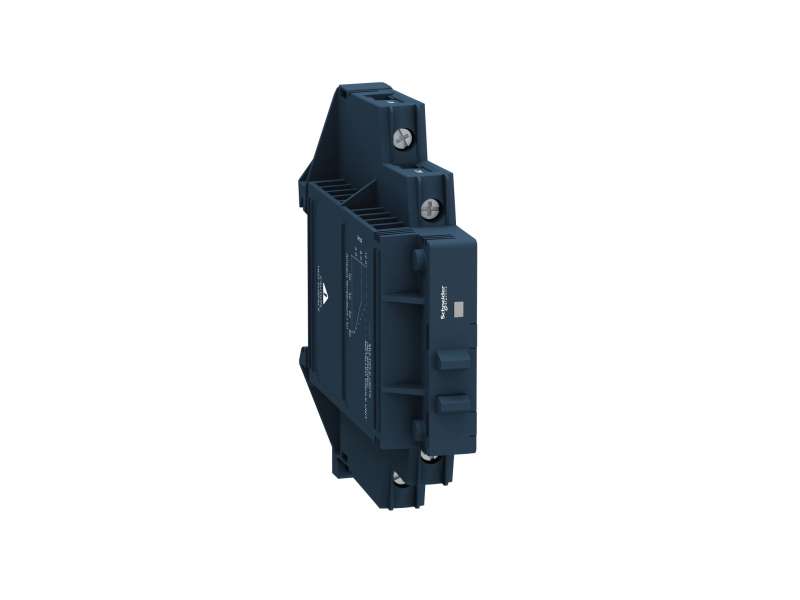

Schneider Electric Solid state relej - za DIN šinu - ulaz 4-32 V DC, izlaz 24-280 V AC ,12A ; SSM1A112BDR
Solid state modular relay, 12 A, random swtching, input 4...32 V DC, output 24...280 V AC...
VAT-exclusive price: 4.890,00 |
VAT-inclusive price: 5.868,00 |
Solid state modular relay, 12 A, random swtching, input 4...32 V DC, output 24...280 V AC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Solid state relay
|
|
| device short name |
SSM
|
|
| number of channels |
1
|
|
| Number of phases |
1 phase
|
| mounting support |
Symmetrical DIN rail
|
|
|---|---|---|
| [In] rated current |
12 A
|
|
| output voltage |
24...280 V AC
|
|
| [Uc] control circuit voltage |
4...32 V DC
|
|
| contacts type and configuration |
1 NO
|
|
| tightening torque |
0.5...0.8 N.m for input
0.5...0.8 N.m for output |
|
| connections - terminals |
Screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input
Screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output |
|
| maximum capacitance |
10 pF for input/output
|
|
| insulation resistance |
1000 MOhm at 500 V DC
|
|
| local signalling |
LED (green)input status:
|
|
| minimum switching voltage |
4 V DC turn-on
|
|
| maximum switching voltage |
1 V DC turn-off
|
|
| input current |
9…11 mA
|
|
| solid state output type |
SCR output
Random voltage switching |
|
| load current |
0.15…12 A
|
|
| transient overvoltage |
600 V
|
|
| surge current |
715 A for 16.6 ms
750 A for 20 ms |
|
| maximum voltage drop |
<1.3 V on-state
|
|
| motor power hp |
0.33 hp 40 °C 240 V AC
|
|
| maximum I²t for fusing |
2560 A².s for 10 ms at 50 Hz
2330 A².s for 8.33 ms at 60 Hz |
|
| maximum leakage current |
0.1 mA off-state
|
|
| dV/dt |
500 V/µs off-state at maximum voltage
|
|
| response time |
0.5 cycle (turn-off)
|
|
| power factor |
0.5 (with maximum load)
|
|
| overvoltage category |
III
|
|
| width |
18 mm
|
|
| height |
90.3 mm
|
|
| depth |
83.7 mm
|
|
| net weight |
0.09 kg
|
| flame retardance |
V0 conforming to UL 94
|
|
|---|---|---|
| dielectric strength |
4 kV AC for input/output
4 kV AC for input or output to case |
|
| pollution degree |
2
|
|
| standards |
IEC 60950-1
IEC 61000 IEC 62314 |
|
| product certifications |
REACH
UL CSA |
|
| marking |
CE
|
|
| IP degree of protection |
IP20
|
|
| ambient air temperature for operation |
-30…80 °C
|
|
| ambient air temperature for storage |
-30…100 °C
|
| Package 1 Weight |
0.098 kg
|
|
|---|---|---|
| Package 1 Height |
0.250 dm
|
|
| Package 1 width |
0.900 dm
|
|
| Package 1 Length |
0.950 dm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
-
Zelio Relays SSM1A112BDR
