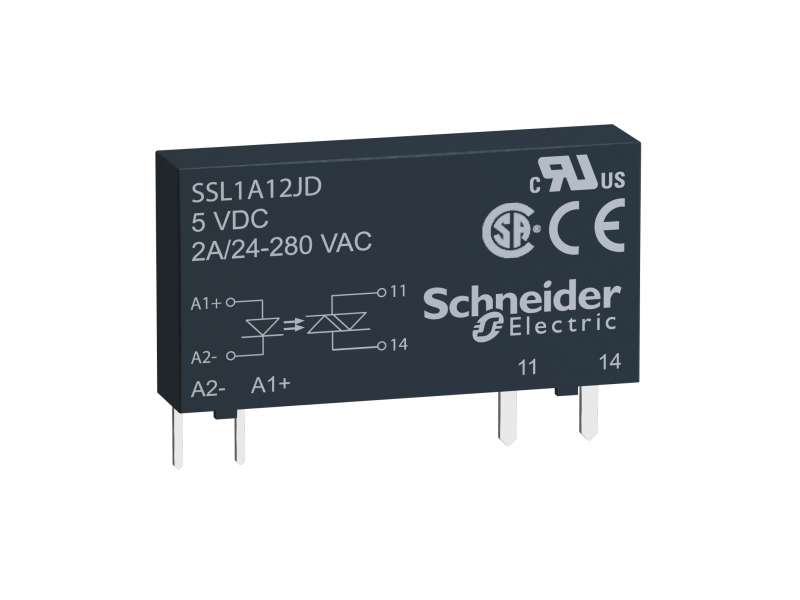

Schneider Electric Solid state relej, utični, ulaz 3-12 V DC, izlaz 24-280 V AC, 2A;SSL1A12JDR
Harmony, Solid state slim relay, 2 A, random switching, input 3…12 V DC, output 24...280 V AC...
VAT-exclusive price: 1.693,00 |
VAT-inclusive price: 2.031,60 |
Harmony, Solid state slim relay, 2 A, random switching, input 3…12 V DC, output 24...280 V AC
| range of product |
Harmony Solid State Relays
|
|
|---|---|---|
| product or component type |
Solid state relay up to 10 A
|
|
| device short name |
SSL
|
|
| network number of phases |
1 phase
|
|
| output switching mode |
Random voltage switching
|
| mounting support |
Socket
|
|
|---|---|---|
| [In] rated current |
2 A
|
|
| output voltage |
24...280 V AC
|
|
| [Uc] control circuit voltage |
3...12 V DC
|
|
| contacts type and configuration |
1 NO
|
|
| capacitance unbalance |
1.5 pF input/output
|
|
| minimum switching voltage |
3 V DC turn-on
|
|
| maximum switching voltage |
1 V DC turn-off
|
|
| input current limits |
15 mA
|
|
| input impedance |
333 kOhm
|
|
| solid state output type |
Random voltage switching
SCR output |
|
| load current |
0.07…2 A
|
|
| tansient Overvoltage |
600 V AC
|
|
| surge current |
120 A for 16.6 ms
115 A for 20 ms |
|
| maximum voltage drop |
<1.1 V on-state
|
|
| maximum I²t for fusing |
285 A².s for 10 ms at 50 Hz
260 A².s for 8.3 ms at 60 Hz |
|
| maximum leakage current |
4 mA off-state
|
|
| dV/dt |
500 V/µs off-state at maximum voltage
|
|
| response time |
0.5 cycle (turn-off)
0.1 ms (turn-on) |
|
| overvoltage category |
III
|
|
| width |
5 mm
|
|
| height |
28 mm
|
|
| depth |
15 mm
|
|
| net weight |
0.0041 kg
|
| flame retardance |
V0 conforming to UL 94
|
|
|---|---|---|
| dielectric strength |
2500 V for input/output
|
|
| pollution degree |
2
|
|
| product certifications |
CSA
UL |
|
| marking |
CE
|
|
| ambient air temperature for operation |
-20…80 °C
|
|
| ambient air temperature for storage |
-20…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
5 g
|
|
| Package 1 Height |
0.7 cm
|
|
| Package 1 width |
2.5 cm
|
|
| Package 1 Length |
37 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
12
|
-
