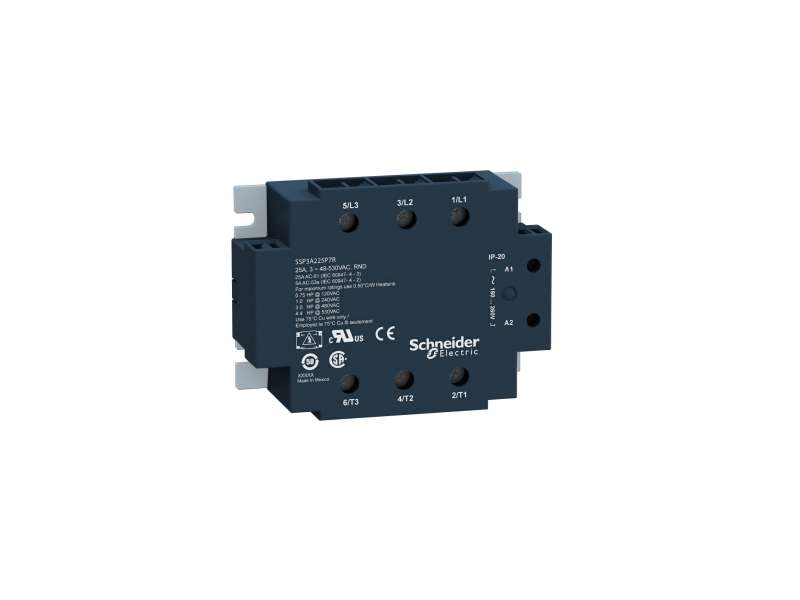

Schneider Electric Solid state relej-panel-ulaz 180-280 VAC, izlaz 48-530 VAC,25A-termič. interfejs;SSP3A225P7T
Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad, input 180…280 V AC, output 48…530 V AC...
VAT-exclusive price: 20.319,00 |
VAT-inclusive price: 24.382,80 |
Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad, input 180…280 V AC, output 48…530 V AC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Solid state relay up to 30 A
|
|
| Provided accessory |
Thermal interface
|
|
| device short name |
SSP
|
|
| mounting support |
Panel
|
|
| Number of phases |
3 phases
|
|
| Contacts type and conifguration |
3 NO
|
|
| [In] rated current |
25 A
|
|
| solid state output type |
Zero voltage switching
|
|
| output switching mode |
Zero voltage switching
|
| control type |
Without test button
|
|
|---|---|---|
| [Uc] control circuit voltage |
180...280 V AC
|
|
| minimum switching voltage |
180 V AC turn-on
|
|
| maximum switching voltage |
10 V AC turn-off
|
|
| response time |
20 ms (turn-on)
30 ms (turn-off) |
|
| Input current |
7…20 mA
|
|
| output voltage |
48...530 V AC
|
|
| load current |
0.1…25 A
|
|
| Transient overvoltage |
1200 V
|
|
| surge current |
275 A for 20 ms
300 A for 16.6 ms 85 A for 1 s |
|
| maximum I²t for fusing |
380 A².s for 10 ms at 50 Hz
370 A².s for 8.3 ms at 60 Hz |
|
| maximum leakage current |
3 mA off-state
|
|
| maximum voltage drop |
<1.35 V on-state
|
|
| dV/dt |
500 V/µs off-state at maximum voltage
|
|
| Power factor |
0.5 (with maximum load)
|
|
| Motor controller rating |
0.75 hp 40 °C 120 V AC
1 hp 40 °C 240 V AC 3 hp 40 °C 480 V AC 4.4 hp 40 °C 530 V AC |
|
| motor power kW |
0.56 kW at 40 °C 120 V AC
0.74 kW at 40 °C 240 V AC 2.22 kW at 40 °C 480 V AC 3.24 kW at 40 °C 530 V AC |
|
| insulation resistance |
>= 1000 MOhm at 500 V DC
|
|
| Maximum capacitance |
8 pF for input/output
|
|
| dielectric strength |
4 kV AC for input/output
4 kV AC for input or output to case |
|
| tightening torque |
0.9...1.1 N.m for input
1.7...2.2 N.m for output |
|
| connections - terminals |
Screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input
Screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output |
|
| Thermal resistance |
0.24 °C/W
|
|
| LED indicator |
LED, green for input
|
|
| IP degree of protection |
IP20
|
|
| net weight |
0.24 kg
|
|
| width |
101.3 mm
|
|
| height |
79.7 mm
|
|
| depth |
35.4 mm
|
|
| device presentation |
Complete product
|
| flame retardance |
V0 conforming to UL 94
|
|
|---|---|---|
| ambient air temperature for operation |
-40…80 °C
|
|
| ambient air temperature for storage |
-40…125 °C
|
|
| pollution degree |
2
|
-
Zelio Relays SSP3A225P7T
