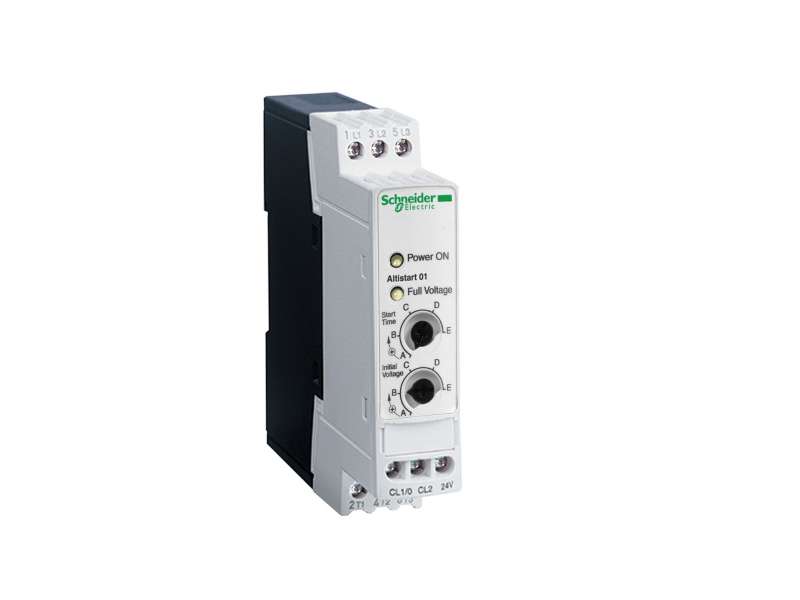

Altistart 01

Soft starter

Asynchronous motors

Simple machine

ATS01

1 phase

110...480 V - 10...10 %

3 kW, 3 phases at 400 V
0.75 kW, 3 phases at 230 V
1.1 kW, 3 phases at 230 V
2.2 kW, 3 phases at 400 V
0.75 kW, 1 phase at 230 V

1 hp, 3 phases at 230 V
2 hp, 3 phases at 460 V
3 hp, 3 phases at 460 V
0.5 hp, 3 phases at 210 V
1.5 hp, 3 phases at 230 V

6 A

AC-53B conforming to EN/IEC 60947-4-2

30 A at nominal load

Start with voltage ramp

1 W at full load and at end of starting
31 W in transient state

With heat sink

Integrated bypass

99…528 V

50...60 Hz - 5...5 %

47.5...63 Hz

<= power supply voltage

110 V AC +/- 10 % at 30 mA
24 V AC/DC +/- 10 % at 25 mA
240 V AC +/- 10 % at 65 mA

1 s / 100
5 s / 20
Adjustable from 1 to 5 s

30...80 % of starting torque of motor connected directly on the line supply

2 A DC-13
3 A AC-15

0.8 N.m

Cage type connector - rigid 1 2.5 mm² AWG 14 control circuit
Cage type connector - rigid 1 2.5 mm² AWG 14 power circuit
Cage type connector - rigid 2 1 mm² AWG 17 control circuit
Cage type connector - rigid 2 1 mm² AWG 17 power circuit
Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuit
Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuit
Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuit
Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuit
Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuit
Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuit
Cage type connector - flexible without cable end 2 1 mm² AWG 17 control circuit
Cage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit

CE

Vertical +/- 10 degree

100 mm

23 mm

100 mm

0.16 kg

ATS01N1

0.55…1 kW at 200…240 V 3 phases
1.1…2 kW at 380…440 V 3 phases
0.55…1 kW at 200…240 V 1 phase
1.1…2 kW at 200…240 V 3 phases
2.2…3 kW at 380…440 V 3 phases

Soft starter

Conducted and radiated emissions level B conforming to CISPR 11
Conducted and radiated emissions level B conforming to IEC 60947-4-2
Damped oscillating waves level 3 conforming to IEC 61000-4-12
Electrostatic discharge level 3 conforming to IEC 61000-4-2
EMC immunity conforming to EN 50082-1
EMC immunity conforming to EN 50082-2
Harmonics conforming to IEC 1000-3-2
Harmonics conforming to IEC 1000-3-4
Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6
Immunity to electrical transients level 4 conforming to IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11
Voltage/current impulse level 3 conforming to IEC 61000-4-5

EN/IEC 60947-4-2

C-Tick
CCC
CSA
B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
UL
GOST

IP20

2 conforming to EN/IEC 60947-4-2

1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6

15 gn for 11 ms conforming to EN/IEC 60068-2-27

5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3

-10…40 °C (without derating)
40…50 °C (with current derating of 2 % per °C)

-25…70 °C conforming to EN/IEC 60947-4-2

<= 1000 m without derating
> 1000 m with current derating of 2.2 % per additional 100 m

PCE

1

178 g

2.5 cm

10.3 cm

10.5 cm

S02

36

6.778 kg

15 cm

30 cm

40 cm

Yes

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

Yes

Yes

China RoHS declaration

End of Life Information

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

18 months
