Schneider Electric SMX 304L orman nerđajući čelik, V2000xŠ1000xD400mm, Scotch Brite® završna obrada; NSYSMX201040
SMX 304L stainless monobloc enclosure, H2000xW1000xD400mm, Scotch Brite® finish....
VAT-exclusive price: 711.519,00 |
VAT-inclusive price: 853.822,80 |

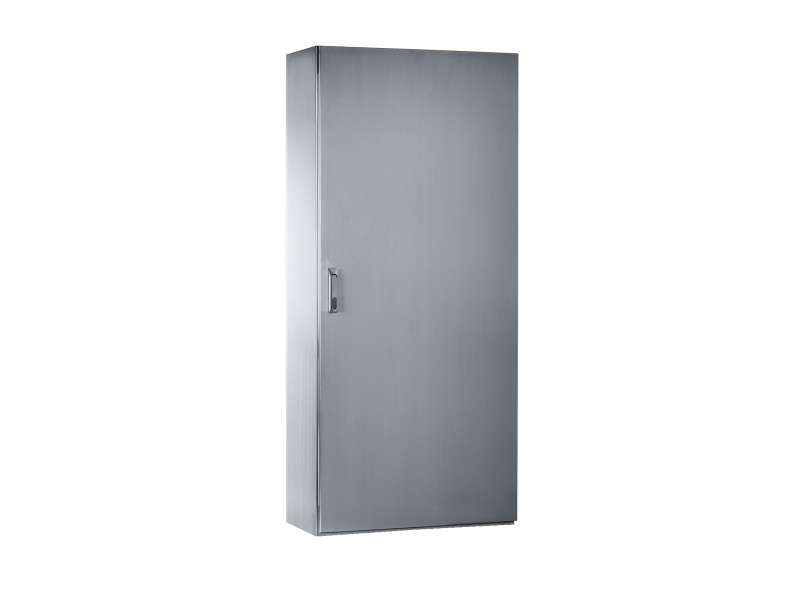

SMX 304L stainless monobloc enclosure, H2000xW1000xD400mm, Scotch Brite® finish.
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial SMX
|
|
| enclosure type |
Multi-purpose
|
|
| category |
Compact enclosure
|
|
| nominal height |
2000 mm
|
|
| nominal width |
1000 mm
|
|
| nominal depth |
400 mm
|
|
| product installation |
Floor-standing
|
|
| device composition |
1 body
2 door 1 cable gland plate 1 locking system with handle: door 4 mounting plate bracket |
| body type |
Single piece body folded and welded
|
|
|---|---|---|
| door type |
Plain
|
|
| number of doors |
Front face: 2 door(s)
|
|
| door opening side |
Reversible (120 °)
|
|
| lock type |
3 points lock, handle with 5 mm double-bar insert
|
|
| mounting plate description |
Without mounting plate
|
|
| type of gland plate |
Plain
|
|
| accessibility for operation |
Front
|
|
| removable parts |
Door by hinges
Mounting plate bracket by screws Cable gland plate by clips |
|
| material |
Body and door: stainless steel 304L
Handle: zamak Hinge: stainless steel |
|
| surface finish |
Enclosure: Scotch-Brite® brushed
Handle: painted |
|
| thickness |
1.5 mm
|
|
| net weight |
126 kg
|
| standards |
IEC 62208
|
|
|---|---|---|
| product certifications |
UL 508
CAN/CSA 22 |
|
| IP degree of protection |
IP55 conforming to IEC 60529
|
|
| IK degree of protection |
IK10 conforming to IEC 62262
|
|
| environmental characteristic |
Corrosive
Specific hygiene |
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Spacial SMX NSYSMX201040
