Schneider Electric Slobodnostojeći poliest.orman PLA kompletno zaptiven VŠD1500x1000x420 IP65 ; NSYPLA15104G
Floor standing enclosure polyester vers.PLA completely sealed 1500x1000x420 IP65...
VAT-exclusive price: 143.107,00 |
VAT-inclusive price: 171.728,40 |

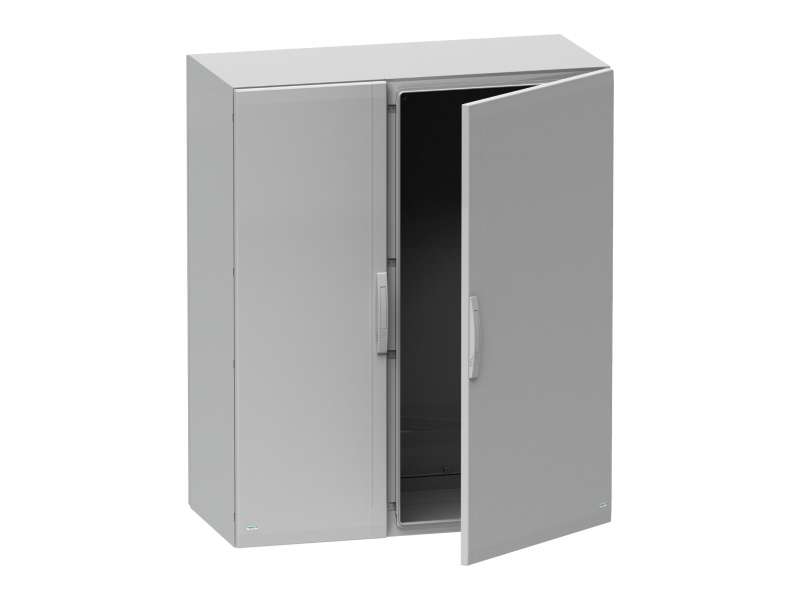

Floor standing enclosure polyester vers.PLA completely sealed 1500x1000x420 IP65
| range |
Thalassa
|
|
|---|---|---|
| product name |
Thalassa PLA
|
|
| Enclosure type |
Multi-purpose
|
|
| product or component type |
Suitable enclosure
|
|
| Version |
PLA
|
|
| Nominal height |
1500 mm
|
|
| Nominal width |
1000 mm
|
|
| Nominal depth |
420 mm
|
|
| enclosure mounting |
Floor-standing
|
|
| device composition |
1 top part
1 bottom part 2 side part 2 door 2 rear panel |
| body type |
Sealed top and bottom part assembled with side parts
|
|
|---|---|---|
| door type |
Plain front
|
|
| number of doors |
2 door(s)
|
|
| door opening side |
Right and left (120 °)
|
|
| lock type |
4 points lock, 5 mm double-bar
|
|
| accessibility for operation |
Rear
Front |
|
| removable parts |
Door by hinges
Rear panel by fixing element |
|
| material |
Polyester reinforced with fibreglass
|
|
| colour |
Grey (RAL 7035)
|
|
| standards |
UL 508 A
IEC 62208 |
|
| NEMA degree of protection |
NEMA 1
NEMA 2 NEMA 13 NEMA 12 |
|
| product certifications |
DNV Marine
UL/cUL listed Veritas |
|
| electrical insulation class |
Class II
|
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed)
|
|
|---|---|---|
| IK degree of protection |
IK10 conforming to IEC 62262 (plain door)
|
|
| fire resistance |
960 °C conforming to IEC 62208
|
|
| ambient air temperature for storage |
-35…90 °C
|
| Package 1 Weight |
75.409 kg
|
|
|---|---|---|
| Package 1 Height |
1520.000 mm
|
|
| Package 1 width |
1030.000 mm
|
|
| Package 1 Length |
480.000 mm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
-
Thalassa PLA NSYPLA15104G
