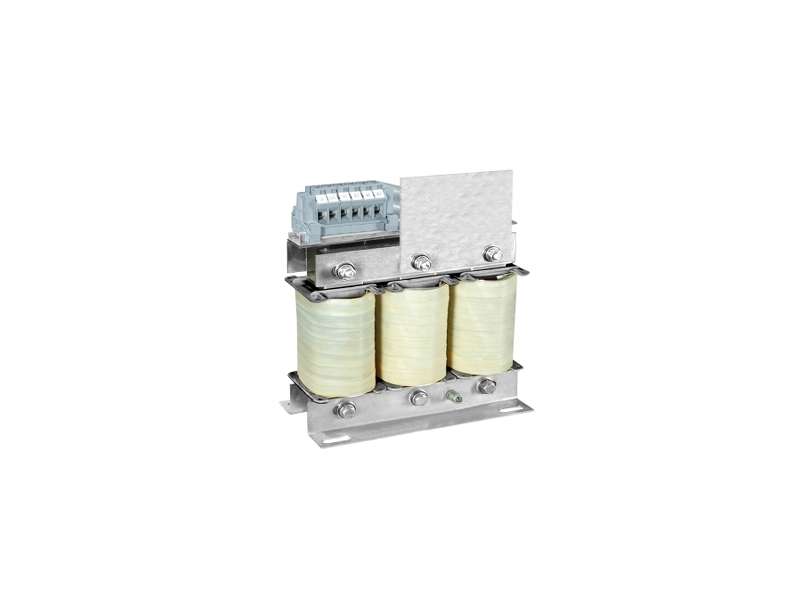

Schneider Electric Sinusni filter - 400 A - za Altivar frekventni regulator;VW3A5209
sinus filter - 400 A - for Altivar variable speed drive...
VAT-exclusive price: 1.297.700,00 |
VAT-inclusive price: 1.557.240,00 |
sinus filter - 400 A - for Altivar variable speed drive
| product or component type | Sinus filter |
|---|---|
| range compatibility |
Altivar 61Q Altivar 71Q Altivar 61 Altivar Process ATV900 Altivar 71 Altivar Process ATV600 |
| product specific application | Output filter |
| [In] rated current | 400 A |
| thermal losses | 1900 W at 100 Hz |
| product compatibility |
ATV61HC22N4 ATV61QC20N4 ATV61QC25N4 ATV71HC20N4 ATV71HC25N4 ATV71QC20N4 ATV71QC25N4 ATV630 variable speed drive wall mount - 220 kW, 380...480 V ATV930 variable speed drive wall mount - 220 kW, 380...480 V |
| switching frequency | 4...8 kHz |
| maximum output frequency | 100 Hz |
| maximum permissible voltage | 500 V AC |
| electrical connection | Bare wires diameter: 11 mm |
|---|---|
| maximum voltage drop at rated load | 10 % |
| max current | 1.5 x nominal current (duration = 60 s) |
| net weight | 190 kg |
| IP degree of protection | IP00 |
|---|---|
| environmental characteristic |
3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3 |
| pollution degree | 2 conforming to EN 50178 |
| vibration resistance |
1 gn (f= 13…200 Hz) conforming to IEC 60068-2 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2 |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| relative humidity | 0…95 % |
| ambient air temperature for operation |
40…50 °C (with current derating 1.5 % per °C) -10…40 °C (without current derating) |
| ambient air temperature for storage | -40…65 °C |
| operating altitude |
<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 168.5 kg |
| Package 1 Height | 80.0 cm |
| Package 1 width | 39.0 cm |
| Package 1 Length | 59.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 177.0 kg |
| Package 2 Height | 90.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
| product or component type | Sinus filter |
|---|---|
| range compatibility |
Altivar 61Q Altivar 71Q Altivar 61 Altivar Process ATV900 Altivar 71 Altivar Process ATV600 |
| product specific application | Output filter |
| [In] rated current | 400 A |
| thermal losses | 1900 W at 100 Hz |
| product compatibility |
ATV61HC22N4 ATV61QC20N4 ATV61QC25N4 ATV71HC20N4 ATV71HC25N4 ATV71QC20N4 ATV71QC25N4 ATV630 variable speed drive wall mount - 220 kW, 380...480 V ATV930 variable speed drive wall mount - 220 kW, 380...480 V |
| switching frequency | 4...8 kHz |
| maximum output frequency | 100 Hz |
| maximum permissible voltage | 500 V AC |
| electrical connection | Bare wires diameter: 11 mm |
|---|---|
| maximum voltage drop at rated load | 10 % |
| max current | 1.5 x nominal current (duration = 60 s) |
| net weight | 190 kg |
| IP degree of protection | IP00 |
|---|---|
| environmental characteristic |
3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3 |
| pollution degree | 2 conforming to EN 50178 |
| vibration resistance |
1 gn (f= 13…200 Hz) conforming to IEC 60068-2 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2 |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| relative humidity | 0…95 % |
| ambient air temperature for operation |
40…50 °C (with current derating 1.5 % per °C) -10…40 °C (without current derating) |
| ambient air temperature for storage | -40…65 °C |
| operating altitude |
<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 168.5 kg |
| Package 1 Height | 80.0 cm |
| Package 1 width | 39.0 cm |
| Package 1 Length | 59.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 177.0 kg |
| Package 2 Height | 90.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
