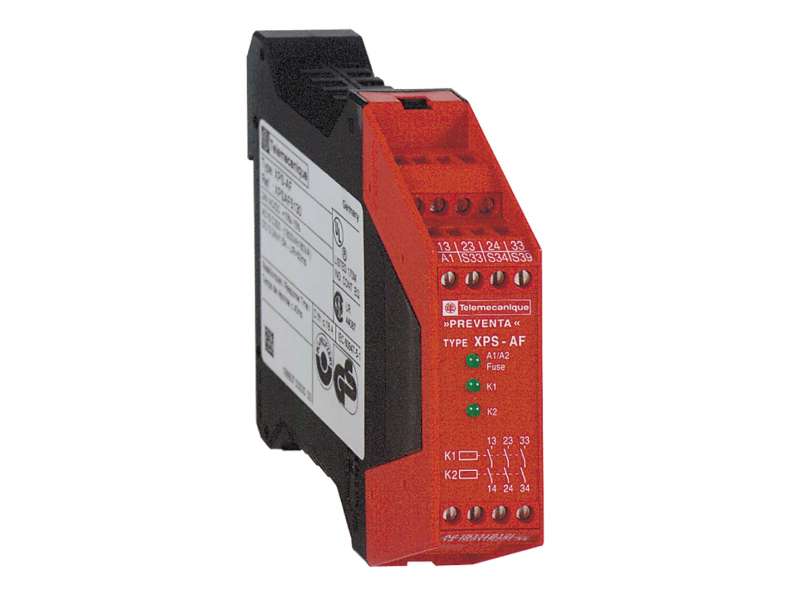

Schneider Electric Sigurnosni modul XPSAF - nužno isključenje - 24 V AC DC; XPSAF5130
Module XPSAF - Emergency stop - 24 V AC DC...
VAT-exclusive price: 14.145,77 |
VAT-inclusive price: 16.974,93 |
Module XPSAF - Emergency stop - 24 V AC DC
| range of product |
Preventa Safety automation
|
|
|---|---|---|
| product or component type |
Preventa safety module
|
|
| safety module name |
XPSAF
|
|
| safety module application |
For emergency stop and switch monitoring
|
|
| function of module |
Emergency stop monitoring 1-channel wiring
Emergency stop monitoring 2-channel wiring Monitoring of a movable guard |
|
| safety level |
Can reach PL e/category 4 conforming to EN/ISO 13849-1
Can reach category 3 conforming to EN/IEC 62061 |
|
| safety reliability data |
DC > 99 % conforming to EN/ISO 13849-1
MTTFd = 243 years conforming to EN/ISO 13849-1 PFHd = 4.62E-9 1/h conforming to EN/IEC 62061 |
|
| type of start |
Configurable
|
|
| connections - terminals |
Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid with cable end, with double bezel Captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with double bezel Captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible with cable end, with double bezel Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid with cable end, with double bezel Captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
|
| output type |
Relay instantaneous opening, 3 NO circuit(s), volt-free
|
|
| number of additional circuits |
0
|
|
| [Us] rated supply voltage |
24 V AC - 15...10 %
24 V DC - 15...10 % |
| synchronisation time between inputs |
Unlimited
|
|
|---|---|---|
| supply frequency |
50/60 Hz
|
|
| maximum power consumption in VA |
5 VA AC
|
|
| input protection type |
Internal, electronic
|
|
| [Uc] control circuit voltage |
24 V
|
|
| maximum line resistance |
90 Ohm
|
|
| breaking capacity |
180 VA holding AC-15 C300 relay output
1800 VA inrush AC-15 C300 relay output |
|
| breaking capacity |
1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
|
|
| output thermal current |
6 A per relay for relay output
|
|
| [Ith] conventional free air thermal current |
18 A
|
|
| associated fuse rating |
4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
|
| minimum output current |
10 mA for relay output
|
|
| minimum output voltage |
17 V for relay output
|
|
| maximum response time on input open |
40 ms
|
|
| [Ui] rated insulation voltage |
300 V (pollution degree 2) conforming to IEC 60947-5-1
300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
|
| [Uimp] rated impulse withstand voltage |
4 kV overvoltage category III conforming to IEC 60947-5-1
4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
|
| local signalling |
3 LEDs
|
|
| current consumption |
30 mA at 24 V AC on power supply
|
|
| mounting support |
35 mm symmetrical DIN rail
|
|
| net weight |
0.25 kg
|
| standards |
EN/IEC 60947-5-1
EN/ISO 13850 EN 60204-1 EN 1088/ISO 14119 |
|
|---|---|---|
| product certifications |
UL
TÜV CSA |
|
| IP degree of protection |
IP20 (terminals) conforming to EN/IEC 60529
IP40 (enclosure) conforming to EN/IEC 60529 |
|
| ambient air temperature for operation |
-25…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
248 g
|
|
| Package 1 Height |
3 cm
|
|
| Package 1 width |
10.5 cm
|
-
Preventa XPS XPSAF5130
