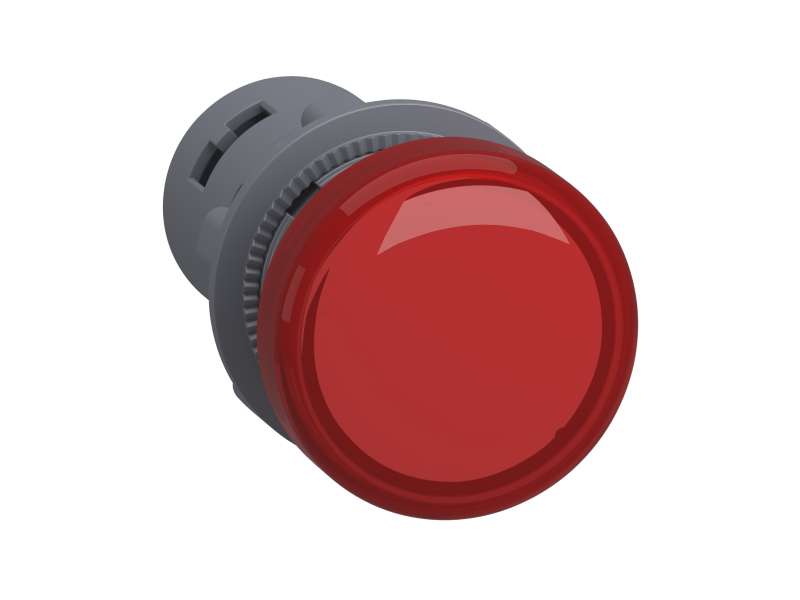

Schneider Electric Signalne lampice, plastic, red, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference;XA2EVM4LC
Pilot light, plastic, red, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference...
VAT-exclusive price: 351,00 |
VAT-inclusive price: 421,20 |
Pilot light, plastic, red, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference
| range of product |
Harmony Easy XA2
|
|
|---|---|---|
| product or component type |
Monolithic pilot light
|
|
| device short name |
XA2
|
|
| mounting diameter |
22 mm
|
|
| shape of signaling unit head |
Round
|
|
| cap/operator or lens colour |
Red
|
|
| light source |
LED
|
|
| bulb base |
Integral LED
|
|
| [Us] rated supply voltage |
220...230 V AC 50/60 Hz
|
| height |
29 mm
|
|
|---|---|---|
| width |
29 mm
|
|
| depth |
53 mm
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| net weight |
0.02 kg
|
|
| device mounting |
Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
|
|
| fixing center |
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
|
| fixing mode |
Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
|
|
| marking |
CCC
CE |
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
|
| shape of screw head |
Cross compatible with Philips No 2 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| [Ui] rated insulation voltage |
400 V (pollution degree 3) conforming to EN/IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV EN/IEC 60947-1
|
|
| signalling type |
Steady
|
|
| supply voltage limits |
0.8…1.2 V AC
|
|
| current consumption |
<= 20 mA
|
|
| service life |
40000 h at rated voltage and 25 °C
|
|
| compatibility code |
XA2E
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| overvoltage category |
Class I conforming to IEC 536
|
|
| IP degree of protection |
IP65 (front face) conforming to IEC 60529
|
|
| IK degree of protection |
IK05 conforming to IEC 50102
|
|
| standards |
GB 14048.5
IEC 60947-1 GB 14048.1 IEC 60947-5-1 |
|
| product certifications |
CE
CCC |
|
| vibration resistance |
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
| Package 1 Weight |
17.000 g
|
|
|---|---|---|
| Package 1 Height |
5.300 cm
|
|
| Package 1 width |
2.900 cm
|
|
| Package 1 Length |
2.900 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
-
Easy Harmony XA2E XA2EVM4LC
