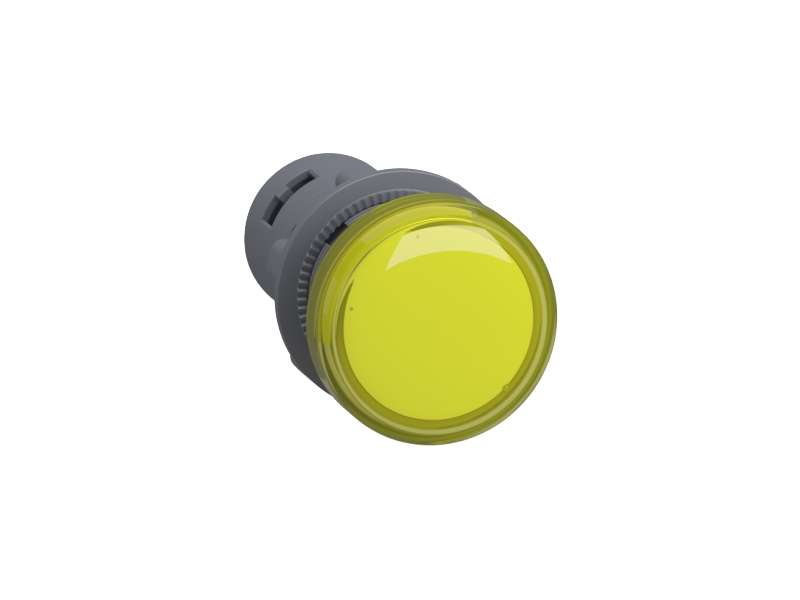

Schneider Electric Signalna lampica, plastična, žuta, Ø 22 mm, sa ugrađenim LED-om, 220…230V AC, protiv interferencije;XA2EVM8LC

Monolithic pilot light, Easy Harmony XA2, plastic, yellow, 22mm, integral LED, 220…230V AC, anti interference...

Brand: Schneider Electric
Product Code: XA2EVM8LC
Availability: Check availability

VAT-exclusive price: 351,00

VAT-inclusive price: 421,20

Qnt:

Description
Specification

Monolithic pilot light, Easy Harmony XA2, plastic, yellow, 22mm, integral LED, 220…230V AC, anti interference

Main
range of product	Easy Harmony XA2
product or component type	Monolithic pilot light
device short name	XA2
mounting diameter	22 mm
shape of signaling unit head	Round
cap/operator or lens colour	Yellow
light source	LED
bulb base	Integral LED
[Us] rated supply voltage	220...230 V AC 50/60 Hz

Complementary
height	29 mm
width	29 mm
depth	53 mm
terminals description ISO n°1	(X1-X2)PL
net weight	0.02 kg
device mounting	Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
fixing center	>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
fixing mode	Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
marking	CE CCC
connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
shape of screw head	Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage	400 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-1
signalling type	Steady
supply voltage limits	0.8…1.2 V AC
current consumption	<= 20 mA
service life	40000 h at rated voltage and 25 °C
compatibility code	XA2E

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
overvoltage category	Class I conforming to IEC 536
IP degree of protection	IP65 (front face) conforming to IEC 60529
IK degree of protection	IK05 conforming to IEC 50102
standards	GB 14048.1 IEC 60947-1 IEC 60947-5-1 GB 14048.5
product certifications	CCC CE
vibration resistance	5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	23.0 g
Package 1 Height	5.3 cm
Package 1 width	2.9 cm
Package 1 Length	2.9 cm
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Weight	0.3 kg
Package 2 Height	5.8 cm
Package 2 width	6.4 cm
Package 2 Length	15.8 cm
Unit Type of Package 3	S02
Number of Units in Package 3	160
Package 3 Weight	5.8 kg
Package 3 Height	15.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm

Main
range of product	Easy Harmony XA2
product or component type	Monolithic pilot light
device short name	XA2
mounting diameter	22 mm
shape of signaling unit head	Round
cap/operator or lens colour	Yellow
light source	LED
bulb base	Integral LED
[Us] rated supply voltage	220...230 V AC 50/60 Hz

Complementary
height	29 mm
width	29 mm
depth	53 mm
terminals description ISO n°1	(X1-X2)PL
net weight	0.02 kg
device mounting	Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
fixing center	>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
fixing mode	Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
marking	CE CCC
connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
shape of screw head	Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage	400 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-1
signalling type	Steady
supply voltage limits	0.8…1.2 V AC
current consumption	<= 20 mA
service life	40000 h at rated voltage and 25 °C
compatibility code	XA2E

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
overvoltage category	Class I conforming to IEC 536
IP degree of protection	IP65 (front face) conforming to IEC 60529
IK degree of protection	IK05 conforming to IEC 50102
standards	GB 14048.1 IEC 60947-1 IEC 60947-5-1 GB 14048.5
