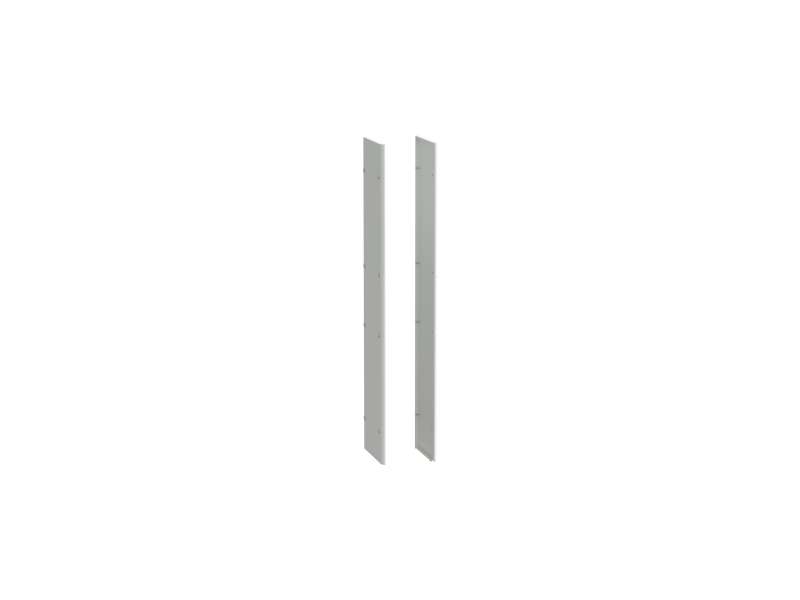

Schneider Electric Side panel, PrismaSeT P, for enclosure D 400mm, IP31, set of 2 (left/right); LVS08750
Side panel, PrismaSeT P, for enclosure D 400mm, IP31, set of 2 (left/right)...
VAT-exclusive price: 30.954,00 |
VAT-inclusive price: 37.144,80 |
Side panel, PrismaSeT P, for enclosure D 400mm, IP31, set of 2 (left/right)
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Side panel |
| Range compatibility | PrismaSeT (PrismaSeT P) enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type |
Metal enclosure Indoor enclosure |
| installation description |
Cubicle - width 400 mm, depth 400 mm Cubicle - width 650 mm, depth 400 mm Cubicle - width 800 mm, depth 400 mm |
| Kit composition |
2 side panel quarter-turn fasteners |
| Standards |
IEC 61439-1 for enclosure IEC 61439-2 for enclosure |
| Product certifications | ASTA |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| Width | 400 mm |
| Height | 2000 mm |
| Net weight | 18.5 kg |
| Quantity per set | Set of 2 |
| IP degree of protection |
IP30 for enclosure IP31 for enclosure |
|---|---|
| IK degree of protection | IK08 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 48.0 cm |
| Package 1 Length | 207.0 cm |
| Package 1 Weight | 19.68 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 97.0 cm |
| Package 2 Width | 120.0 cm |
| Package 2 Length | 202.0 cm |
| Package 2 Weight | 414.0 kg |
