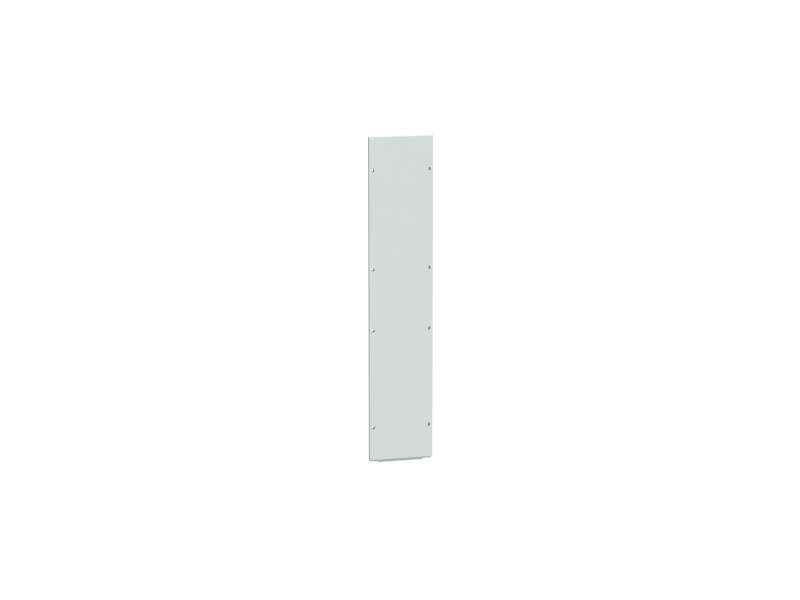

Schneider Electric Side panel, PrismaSeT P, D 400mm, IP55, set of 2 (left/right), for rear side in backside combination; LVS08763
Side panel, PrismaSeT P, D 400mm, IP55, set of 2 (left/right), for rear side in backside combination...
Price on request
Side panel, PrismaSeT P, D 400mm, IP55, set of 2 (left/right), for rear side in backside combination
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Side panel |
| Range compatibility | PrismaSeT (PrismaSeT P) enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type |
Metal enclosure Indoor enclosure |
| installation description |
Cubicle - width 400 mm, depth 400 mm Cubicle - width 650 mm, depth 400 mm Cubicle - width 800 mm, depth 400 mm |
| Kit composition |
2 side panel quarter-turn fasteners |
| Standards |
IEC 61439-1 for enclosure IEC 61439-2 for enclosure |
| Product certifications | ASTA |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| Width | 400 mm |
| Height | 2000 mm |
| Net weight | 26.0 kg |
| Quantity per set | Set of 2 |
| IP degree of protection | IP55 for enclosure |
|---|---|
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 48.5 cm |
| Package 1 Length | 206.5 cm |
| Package 1 Weight | 25.6 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 95 cm |
| Package 2 Width | 120 cm |
| Package 2 Length | 206.5 cm |
| Package 2 Weight | 538 kg |
| Package 3 Height | 95 cm |
