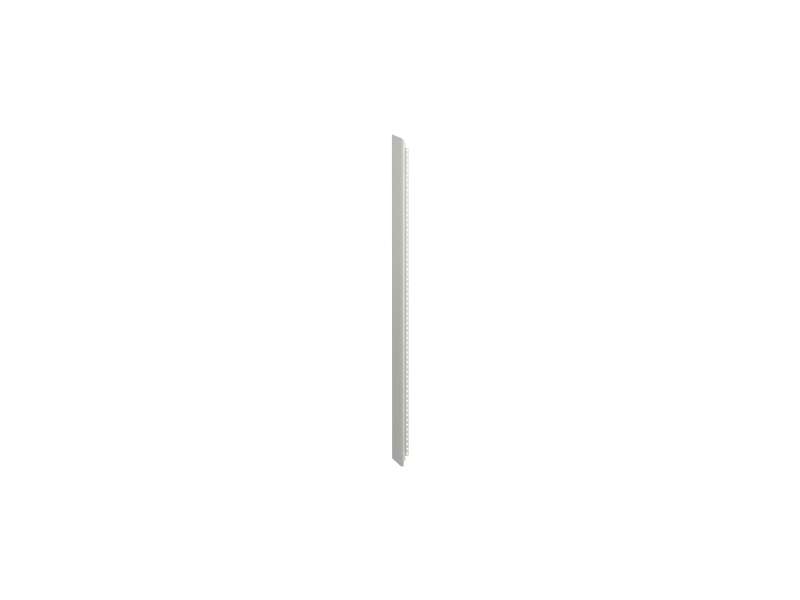

Schneider Electric Side panel, PrismaSeT G, 33M, for enclosure H1880mm, IP30, white, RAL 9003; LVS01033
Side panel, PrismaSeT G, 33M, for enclosure H1880mm, IP30, white, RAL 9003...
VAT-exclusive price: 12.997,00 |
VAT-inclusive price: 15.596,40 |
Side panel, PrismaSeT G, 33M, for enclosure H1880mm, IP30, white, RAL 9003
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Side panel |
| Accessory / separate part category |
Enclosure accessory Spare part |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| installation description | Floor-standing enclosure |
| Mounting location | Side |
| Number of vertical modules [50 mm] | 33 |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| Width | 195 mm |
| Height | 1675 mm |
| Depth | 45 mm |
| Net weight | 3.4 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP30 |
|---|---|
| IK degree of protection | IK08 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 20.0 cm |
| Package 1 Length | 189.0 cm |
| Package 1 Weight | 3.464 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 45.5 cm |
| Package 2 Width | 120.0 cm |
| Package 2 Length | 202.0 cm |
| Package 2 Weight | 136.0 kg |
