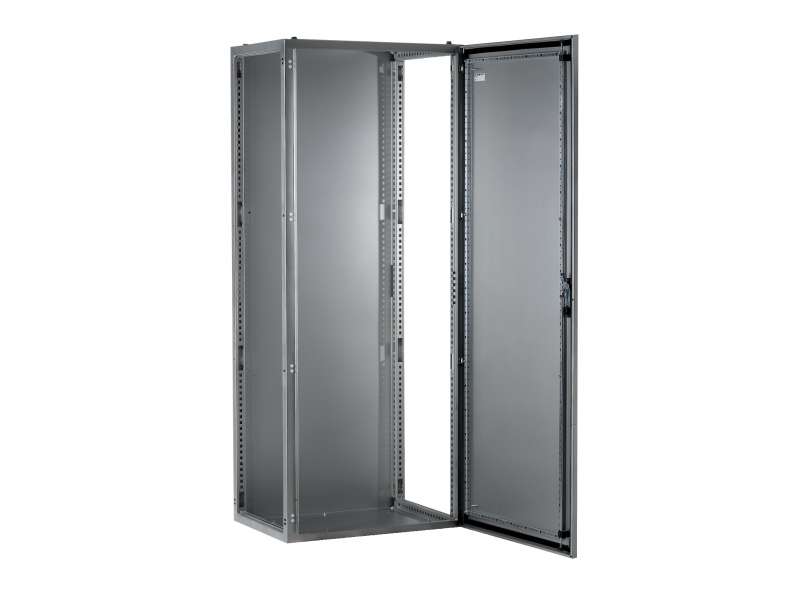

Schneider Electric SFX 304L orman nerđajući čelik, V2000xŠ800xD600mm, Scotch Brite® završna obrada; NSYSFX20860
SFX 304L stainless suitable enclosure, H2000xW800xD600mm, Scotch Brite® finish....
VAT-exclusive price: 893.054,00 |
VAT-inclusive price: 1.071.664,80 |
SFX 304L stainless suitable enclosure, H2000xW800xD600mm, Scotch Brite® finish.
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial SFX
|
|
| enclosure type |
Multi-purpose
|
|
| category |
Suitable enclosure
|
|
| nominal height |
2000 mm
|
|
| nominal width |
800 mm
|
|
| nominal depth |
600 mm
|
|
| product installation |
Floor-standing
|
|
| device composition |
1 structure
1 locking system with handle: door 4 mounting plate bracket 1 cable gland plate 1 door with reinforcement frame |
| body type |
Rear panel integrated
Single piece structure folded and welded |
|
|---|---|---|
| door type |
Plain
|
|
| number of doors |
Front face: 1 door(s)
|
|
| door opening side |
Reversible (120 °)
|
|
| lock type |
3 points lock, handle with 5 mm double-bar insert
|
|
| mounting plate description |
Without mounting plate
|
|
| type of gland plate |
Plain
|
|
| accessibility for operation |
Front
Side |
|
| removable parts |
Door by hinges
Mounting plate bracket by screws Cable gland plate by clips |
|
| material |
Structure and door: stainless steel 304L
Handle: zamak Hinge: stainless steel |
|
| surface finish |
Enclosure: Scotch-Brite® brushed
Handle: painted |
|
| net weight |
81 kg
|
| standards |
IEC 62208
NEMA 4X |
|
|---|---|---|
| product certifications |
UL
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
| IK degree of protection |
IK10 conforming to IEC 62262
|
|
| environmental characteristic |
Specific hygiene
Corrosive |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
81 kg
|
|
| Package 1 Height |
212 cm
|
|
| Package 1 width |
85 cm
|
|
| Package 1 Length |
70 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Spacial SFX NSYSFX20860
