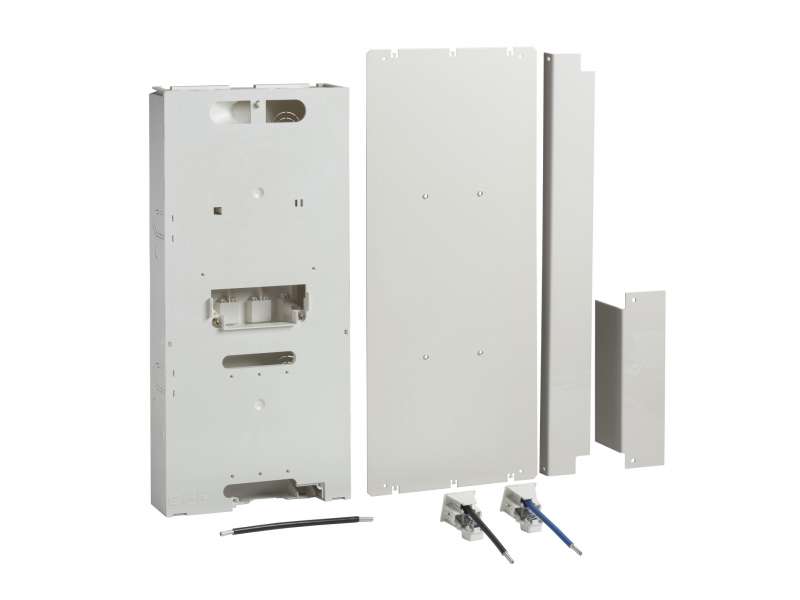

Schneider Electric Set panela za merenje klase 2 3P Š300; LVS03142

PANEL KIT CLASS 2 TARIF METERING 3P W300...

Brand: Schneider Electric
Product Code: LVS03142
Availability: Check availability

VAT-exclusive price: 38.179,00

VAT-inclusive price: 45.814,80

Qnt:

PANEL KIT CLASS 2 TARIF METERING 3P W300

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Metering panel kit
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G) duct
Type of front plate	Cut-out
Installed device	Resi9: by screws DB 90 - control: toggle - vertical installation Power meters: kilowatt-hour meters - vertical installation
Poles description	1 x 1P + N: mounting plate support: DB 90 vertical installation 1 x 3P + N: mounting plate support: kilowatt-hour meters vertical installation

Complementary
Enclosure/cubicle description	Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm
Number of vertical modules [50 mm]	13
Standards	IEC 61439-2 IEC 61439-1
Product certifications	ASTA
Material	Steel
Surface finish	Matt Textured
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Colour	White (RAL 9003)
Height	650 mm
Width	300 mm
Product weight	4.92 kg
Quantity per set	Set of 1
functional unit	300 mm PrismaSeT G floor-standing duct Resi9 DB 90 by screws toggle vertical 1P + N 1 12 50 mm 300 mm PrismaSeT G wall-mounted duct Resi9 DB 90 by screws toggle vertical 1P + N 1 12 50 mm 300 mm PrismaSeT G floor-standing duct power meters kilowatt-hour meters vertical 3P + N 1 12 50 mm 300 mm PrismaSeT G wall-mounted duct power meters kilowatt-hour meters vertical 3P + N 1 12 50 mm

Environment
IP degree of protection	IP30

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.0 cm
Package 1 Width	28.0 cm
Package 1 Length	62.0 cm
Package 1 Weight	4.478 kg
Unit Type of Package 2	P12
Number of Units in Package 2	16
Package 2 Height	58.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	83.648 kg
