Schneider Electric Set od 4 priključka 100A jedan priključak za 3P+N češljastu sabirnicu
Set of 4 connectors 100A monoconnect for 3P+N comb busbar...
VAT-exclusive price: 1.920,00 |
VAT-inclusive price: 2.304,00 |

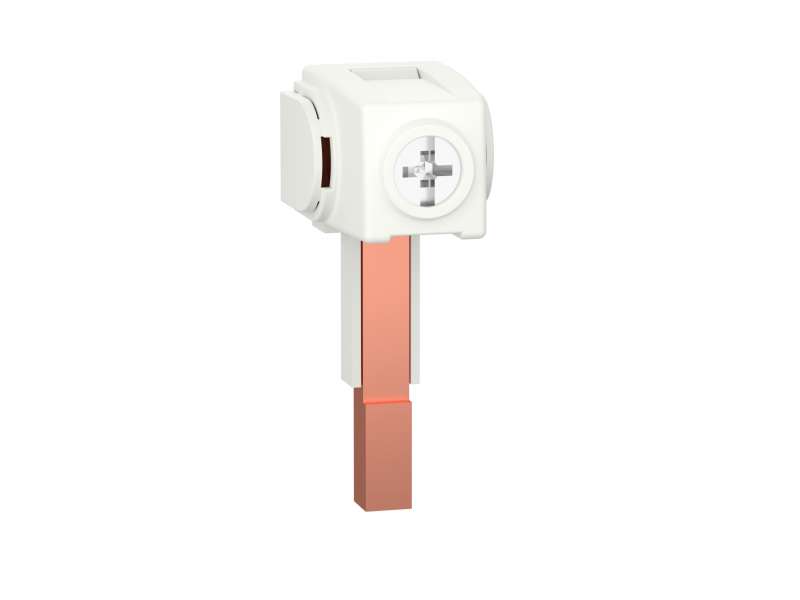

Set of 4 connectors 100A monoconnect for 3P+N comb busbar
| range of product | Acti 9 |
|---|---|
| product name | Linergy FH |
| product or component type | Connector |
| accessory / separate part category | Connection accessory |
| poles description | 3P + N |
| quantity per set | Set of 4 |
| comb busbar and distribution block compatibility | Monoconnect |
| Line Rated Current | 100 A |
|---|---|
| color | White (RAL 9003) |
| connections - terminals | Screw clamp terminals top connector 0.05 in² (35 mm²) |
| tightening torque | 35.40 lbf.in (4 N.m) |
| range compatibility |
Acti 9 iC60 comb busbar Acti 9 iK60 comb busbar Acti 9 iDPN comb busbar Acti 9 iDPN Vigi comb busbar Acti 9 iID comb busbar Acti 9 iID K comb busbar Acti 9 iSW comb busbar Acti 9 iSW-NA comb busbar Acti 9 STI comb busbar |
| Category | 01078 - DE2 MISC |
|---|---|
| Discount Schedule | DE2 |
| GTIN | 03606480485275 |
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 2.26 oz (64 g) |
| Returnability | Yes |
| Country of origin | DE |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Height | 1.14 in (2.9 cm) |
| Package 1 width | 2.40 in (6.1 cm) |
| Package 1 Length | 3.11 in (7.9 cm) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Weight | 14.51 lb(US) (6.582 kg) |
| Package 2 Height | 5.91 in (15 cm) |
| Package 2 width | 11.81 in (30 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
|---|
-
Prisma G A9XPCM04
