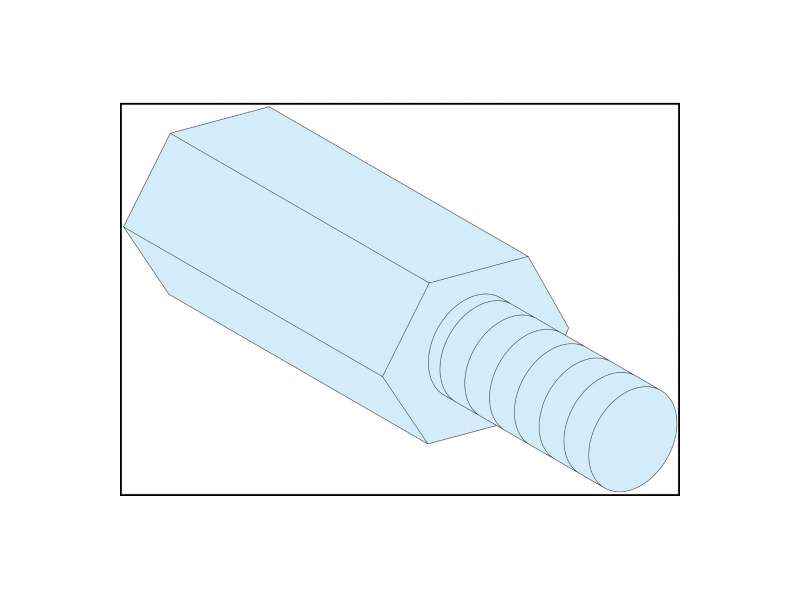

Schneider Electric Šestougaoni odstojnik M5 V = 23 mm - Prisma; LVS03186

4 HEXAGONAL SPACERS M5 H23...

Brand: Schneider Electric
Product Code: LVS03186
Availability: Check availability

VAT-exclusive price: 963,00

VAT-inclusive price: 1.155,60

Qnt:

4 HEXAGONAL SPACERS M5 H23

Main
Range	PrismaSeT
Range of product	PrismaSeT P PrismaSeT G
Product or component type	Hexagonal spacers
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT P) cubicle PrismaSeT (PrismaSeT G) front cover support upright
Cubicle-device connection	Earth bar: vertical by screws

Complementary
Mounting mode	By screws
Mounting support	Functional uprights
installation description	Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm Cubicle Cubicle duct
ISO thread	M5
Quantity per set	Set of 4
Height	23 mm
Colour	Natural
Product weight	0.04 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1 cm
Package 1 Width	3.5 cm
Package 1 Length	3.5 cm
Package 1 Weight	40 g
Unit Type of Package 2	S02
Number of Units in Package 2	50
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	2.23 kg
Unit Type of Package 3	P12
Number of Units in Package 3	400
Package 3 Height	28 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	30 kg
