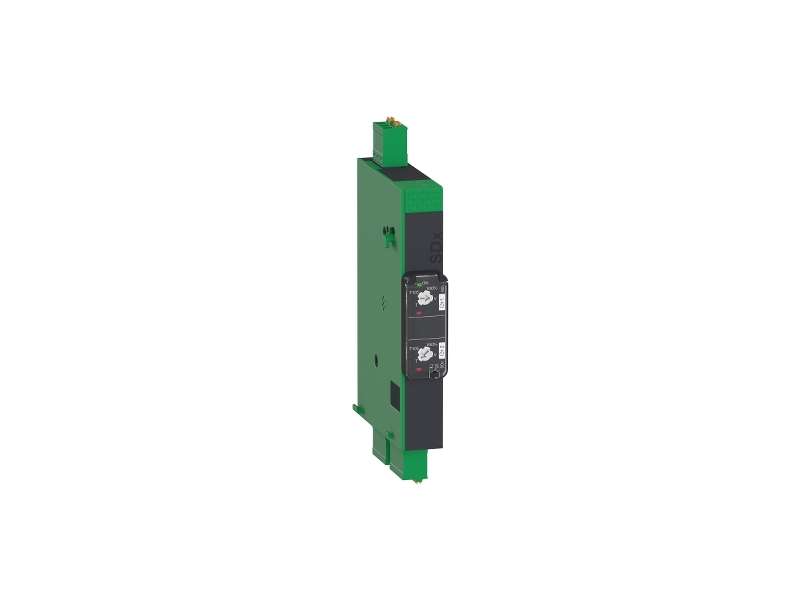

Schneider Electric SDx modul, Compact NSXm, status prekidača za curenje struje SDT/SDV, 2 NO/NC kontakta;LV426900
SDx module, ComPact NSXm, earth leakage circuit breaker status SDT/SDV, 2 NO/NC contacts...
Price on request
SDx module, ComPact NSXm, earth leakage circuit breaker status SDT/SDV, 2 NO/NC contacts
| product or component type | SDX output module |
|---|---|
| device short name | SDx |
| device application | Breaker status monitoring |
| range compatibility | ComPact NSXm earth leakage circuit breaker |
| signal contacts composition |
2 NO/NC for fault 2 NO/NC for alarm |
| fault type |
Overload Earth leakage |
|---|---|
| local signalling |
1 LED (green) for ON status 2 LEDs (red) for output status |
| [Ue] rated operational voltage | 24...240 V AC/DC |
| [Ie] rated operational current |
AC-15: 5 A at 80 V AC 50/60 Hz AC-15: 1.74 A at 230 V AC 50/60 Hz AC-15: 0.3 A at 250 V AC 50/60 Hz DC-13: 5 A at 10 V DC DC-13: 2.08 A at 24 V DC DC-13: 0.3 A at 160 V DC |
| auxiliary connection terminal | Spring 0.5…1.5 mm² copper |
| wire stripping length | 8 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 150.0 g |
| Package 1 Height | 3.0 cm |
| Package 1 width | 9.0 cm |
| Package 1 Length | 16.6 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 18 |
| Package 2 Weight | 2.949 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| product or component type | SDX output module |
|---|---|
| device short name | SDx |
| device application | Breaker status monitoring |
| range compatibility | ComPact NSXm earth leakage circuit breaker |
| signal contacts composition |
2 NO/NC for fault 2 NO/NC for alarm |
| fault type |
Overload Earth leakage |
|---|---|
| local signalling |
1 LED (green) for ON status 2 LEDs (red) for output status |
| [Ue] rated operational voltage | 24...240 V AC/DC |
| [Ie] rated operational current |
AC-15: 5 A at 80 V AC 50/60 Hz AC-15: 1.74 A at 230 V AC 50/60 Hz AC-15: 0.3 A at 250 V AC 50/60 Hz DC-13: 5 A at 10 V DC DC-13: 2.08 A at 24 V DC DC-13: 0.3 A at 160 V DC |
| auxiliary connection terminal | Spring 0.5…1.5 mm² copper |
| wire stripping length | 8 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 150.0 g |
| Package 1 Height | 3.0 cm |
| Package 1 width | 9.0 cm |
| Package 1 Length | 16.6 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 18 |
| Package 2 Weight | 2.949 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
