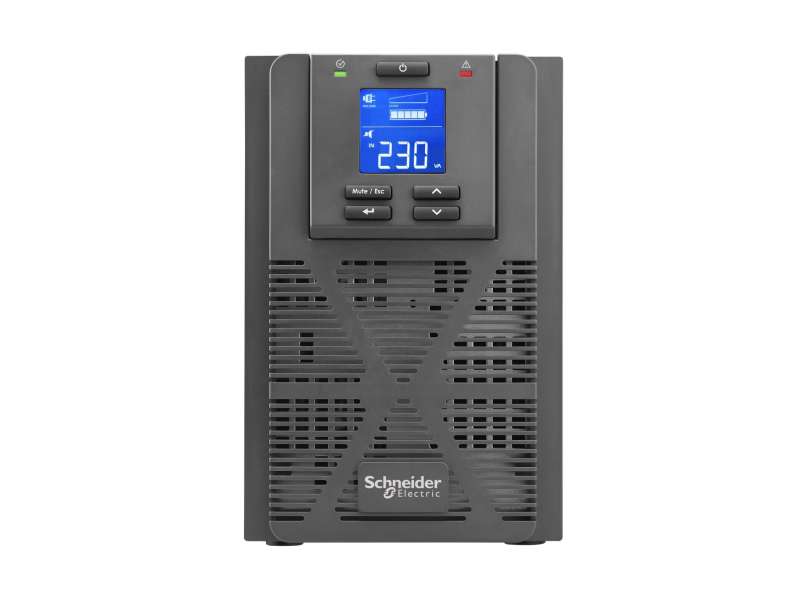

Schneider Electric Schneider Electric Easy UPS SRV 1000VA 230V ; SRVS1KI
Schneider Electric Easy UPS SRV 1000VA 230V...
VAT-exclusive price: 88.235,00 |
VAT-inclusive price: 105.882,00 |
Schneider Electric Easy UPS SRV 1000VA 230V
| Lead time |
Usually in Stock
|
|---|
| provided equipment |
Basic UPS signalling RS-232 cable
CD with software User manual USB cable |
|
|---|---|---|
| max runtime |
4 min
|
|
| Number of tare power |
41 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| UPS size |
WS
|
| cable length |
1.48 m
|
|
|---|---|---|
| colour |
Black
|
|
| depth |
28.8 cm
|
|
| height |
22.3 cm
|
|
| mounting preference |
No preference
|
|
| net weight |
9.3 kg
|
|
| mounting mode |
Not rack-mountable
|
|
| two post mountable |
0
|
|
| USB compatible |
No
|
|
| width |
14.5 cm
|
| network frequency |
40...70 Hz
|
|
|---|---|---|
| plug standard |
IEC 60320 C14
|
|
| input voltage limits |
100...280 V adjustable (half load)
160...280 V |
|
| inputvolt_other |
220 V
240 V |
|
| number of cables |
1
|
|
| input voltage |
230 V
|
| rated power in W |
800 W
|
|
|---|---|---|
| Maximum configurable power in W |
800 W
|
|
| output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
|
| outputvolt_other |
220 V
240 V |
|
| crest factor |
3 : 1
|
|
| UPS type |
Double conversion online
|
|
| Wave type |
Sine wave
|
|
| nb of power socket outlets |
3 IEC 60320 C13
|
|
| bypass type |
Internal bypass (automatic and manual)
|
|
| curve equation |
Efficiency
|
|
| curve fixed loss |
0.0414
|
|
| curve load maximum |
100 %
|
|
| curve load minimum |
5 %
|
|
| curve proportional loss |
0.0537
|
|
| curve square loss |
0.0185
|
|
| curve X-axis maximum |
100 %
|
|
| curve test cond ID |
Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 230V/50Hz electrical input and balanced resistive load (PF = 1.0) output.
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| graph display |
2
|
|
| output voltage |
230 V
|
|
| Maximum configurable power in VA |
1000 VA
|
|
| rated power in VA |
1000 VA
|
|
| runtime at 200W |
00:24:00
|
|
| runtime at 400W |
00:11:00
|
|
| Transfer time |
4 ms typical
|
| product certifications |
CE
|
|
|---|---|---|
| standards |
IEC 62040-1-1
IEC 62040-1-2 |
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 % non-condensing
|
|
| operating altitude |
0...10000 ft
|
|
| ambient air temperature for storage |
-20…50 °C
|
|
| Storage Relative Humidity |
0…95 % Non-condensing
|
|
| storage altitude |
0.00…15240.00 m
|
|
| acoustic level |
50 dB
|
|
| show note OP temperature |
No
|
|
| IP degree of protection |
IP20
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
4 h
|
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| liquid value |
0
|
|
| battery curve |
D
|
|
| battery charger power |
38 W rated
|
|
| extended runtime |
0
|
| free slots |
1
|
|
|---|---|---|
| control panel |
Multifunction LCD status and control console
|
|
| alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
| Surge energy rate |
600 J
|
|---|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
10.6 kg
|
|
| Package 1 Height |
33 cm
|
|
| Package 1 width |
23.5 cm
|
|
| Package 1 Length |
36.5 cm
|
| Warranty |
2 years repair or replace
|
|---|
