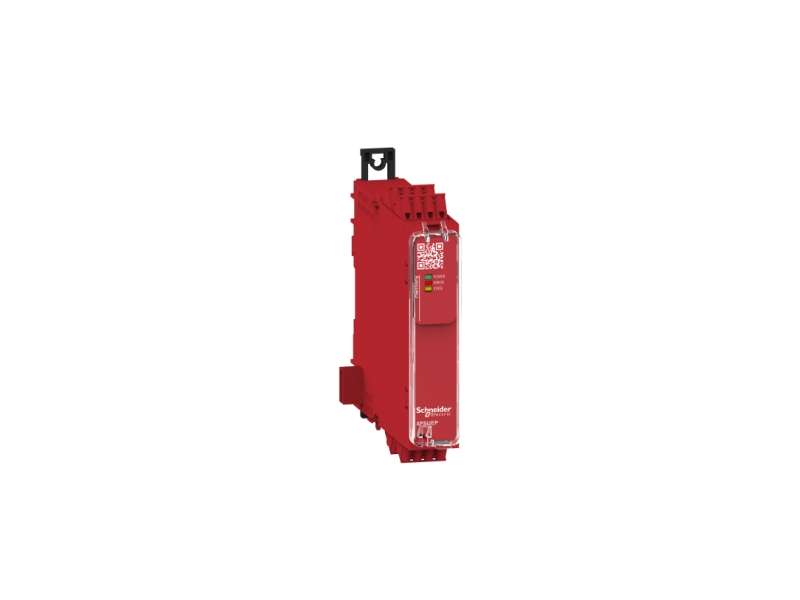

Schneider Electric Safety module, Harmony Safety Automation, Cat.4, Expansion use with Universal range, 24v AC/DC, spring;XPSUEP14AC
Safety module, Harmony Safety Automation, Cat.4, Expansion use with Universal range, 24v AC/DC, spring...
VAT-exclusive price: 15.925,00 |
VAT-inclusive price: 19.110,00 |
Safety module, Harmony Safety Automation, Cat.4, Expansion use with Universal range, 24v AC/DC, spring
| range of product | Harmony Safety Automation |
|---|---|
| product or component type | Safety module |
| safety module name | XPSUEP |
| safety module application | For extending number of safety contacts |
| function of module | Safety output extension |
| safety level |
Can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1 Can reach SILCL 3 for normally open relay contact conforming to IEC 62061 Can reach SIL 3 for normally open relay contact conforming to IEC 61508 Can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1 Can reach SILCL 1 for normally closed relay contact conforming to IEC 62061 Can reach SIL 1 for normally closed relay contact conforming to IEC 61508 |
| safety reliability data |
MTTFd > 30 years conforming to ISO 13849-1 Dcavg >= 99 % conforming to ISO 13849-1 PFHd = 0.97E-09 conforming to ISO 13849-1 HFT = 1 conforming to IEC 62061 PFHd = 0.97E-09 conforming to IEC 62061 SFF > 99% conforming to IEC 62061 HFT = 1 conforming to IEC 61508-1 PFHd = 0.97E-09 conforming to IEC 61508-1 SFF > 99% conforming to IEC 61508-1 Type = B conforming to IEC 61508-1 |
| electrical circuit type | Addition to Preventa XPSU base module |
| connections - terminals |
Removable spring terminal block, 0.2...2.5 mm² solid or flexible Removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor Removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor Removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel Removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] rated supply voltage |
24 V AC - 15...10 % 24 V DC - 20...20 % |
| power consumption in W | 1.5 W 24 V DC |
|---|---|
| power consumption in VA | 3.5 VA 24 V AC 50/60 Hz |
| input protection type | Internal, electronic |
| safety outputs |
4 NO redundant 2 NC single |
| safety inputs | 0 extension bus 24 V DC 5 mA |
| maximum line resistance | 60 Ohm |
| input compatibility |
Normally closed circuit conforming to ISO 14119 XC limit switch conforming to ISO 14119 Mechanical contact conforming to ISO 14119 Normally closed circuit conforming to ISO 13850 Antivalent pair conforming to ISO 14119 OSSD pair conforming to IEC 61496-1-2 3-wire proximity sensors PNP |
| [Ie] rated operational current |
5 A AC-1 for normally open relay contact 3 A AC-15 for normally open relay contact 5 A DC-1 for normally open relay contact 3 A DC-13 for normally open relay contact |
| [Ith] conventional free air thermal current | 8 A |
| associated fuse rating |
10 A gG for NO relay output circuit conforming to IEC 60947-1 4 A gG for NC relay output circuit conforming to IEC 60947-1 |
| minimum output current | 10 mA for relay output |
| minimum output voltage | 12 V for relay output |
| maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 250 V (pollution degree 2) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category II conforming to EN/IEC 60947-1 |
| local signalling |
LED (green) for power ON LED (red) for error LED (yellow) for safety output status |
| mounting support | 35 mm symmetrical DIN rail |
| depth | 120 mm |
| height | 100 mm |
| width | 22.5 mm |
| net weight | 0.200 kg |
| standards |
IEC 60947-5-1 IEC 61508-1 functional safety standard IEC 61508-2 functional safety standard IEC 61508-3 functional safety standard IEC 61508-4 functional safety standard IEC 61508-5 functional safety standard IEC 61508-6 functional safety standard IEC 61508-7 functional safety standard ISO 13849-1 functional safety standard IEC 62061 functional safety standard |
|---|---|
| product certifications |
TÜV cULus |
| IP degree of protection |
IP20 (terminals) conforming to EN/IEC 60529 IP40 (housing) conforming to EN/IEC 60529 IP54 (mounting area) conforming to EN/IEC 60529 |
| ambient air temperature for storage | -25…85 °C |
| relative humidity | 5…95 % non-condensing |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 295 g |
| Package 1 Height | 7 cm |
| Package 1 width | 13.8 cm |
| Package 1 Length | 16 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Weight | 5.48 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Package 3 Height | 15.0 cm |
