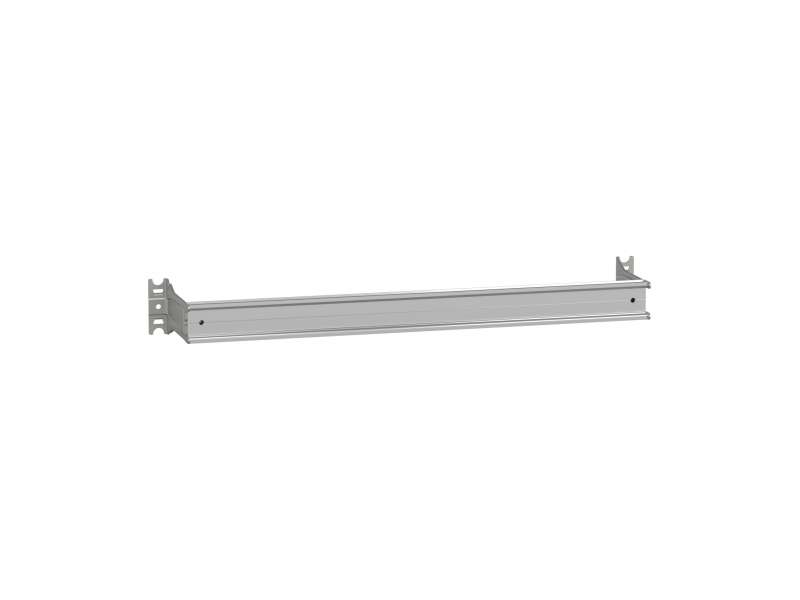

Schneider Electric Š600 instalaciona šina Prisma G; LVS03001

W600 MODULAR DEVICE RAIL PRISMA G...

Brand: Schneider Electric
Product Code: LVS03001
Availability: Check availability

VAT-exclusive price: 879,00

VAT-inclusive price: 1.054,80

Qnt:

W600 MODULAR DEVICE RAIL PRISMA G

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Rail
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G) PrismaSeT (Prisma Pack 250)
Type of rail	Modular
Installed device	Acti 9: fixed C120 without earth leakage protection - control: toggle TeSys: fixed GV2LE TeSys: fixed GV2ME TeSys: fixed GV2RTn Acti 9: fixed iC120 without earth leakage protection - control: toggle Vigilohm: IM20 Vigilohm: IM20H Vigilohm: fixed IM9 Vigilohm: fixed IM9-OL ComPact: fixed INS100 - control: direct front rotary handle - vertical installation ComPact: fixed INS160 - control: direct front rotary handle - vertical installation ComPact: fixed INS40 - control: direct front rotary handle - vertical installation ComPact: fixed INS63 - control: direct front rotary handle - vertical installation Acti 9: fixed modular device Multi9: fixed modular device Multi9: fixed NG125 without earth leakage protection - control: toggle Multi9: fixed NG125 NA - control: toggle Vigirex: RH10 Vigirex: RH21 Vigirex: RH99 Acti 9: fixed C120 with earth leakage protection - control: toggle Acti 9: fixed iC120 with earth leakage protection - control: toggle Multi9: fixed NG125 with earth leakage protection - control: toggle Acti 9: fixed 1/2 or 1 module lamp - horizontal installation ComPact: fixed INS125 - control: direct front rotary handle - vertical installation Acti 9: fixed measurement device - horizontal installation Multi9: fixed measurement device - horizontal installation Acti 9: fixed modular device <= 40 A Multi9: fixed modular device <= 40 A
Poles description	1 x 3P: fixed C120 1 x 4P: fixed C120 9 x 3P: fixed GV2LE 9 x 3P: fixed GV2ME 9 x 3P: fixed GV2RTn 1 x 3P: fixed iC120 1 x 4P: fixed iC120 1 x 3P: fixed INS100 vertical installation 1 x 4P: fixed INS100 vertical installation 1 x 3P: fixed INS160 vertical installation 1 x 4P: fixed INS160 vertical installation 1 x 3P: fixed INS40 vertical installation 1 x 4P: fixed INS40 vertical installation 1 x 3P: fixed INS63 vertical installation 1 x 4P: fixed INS63 vertical installation 1 x 3P: fixed NG125 1 x 4P: fixed NG125 1 x 3P: fixed NG125 NA 1 x 4P: fixed NG125 NA 1 x 3P: fixed INS125 vertical installation 1 x 4P: fixed INS125 vertical installation

Complementary
installation description	Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Pack enclosure - width 600 mm
Number of vertical modules [50 mm]	2 module(s): 1/2 or 1 module lamp, direct in 600 mm Widefloor-standing enclosure 2 module(s): 1/2 or 1 module lamp, direct in 600 mm Widewall-mounted enclosure 5 module(s): C120 without earth leakage protection , direct in 600 mm Widefloor-standing enclosure 5 module(s): C120 without earth leakage protection , direct in 600 mm Widewall-mounted enclosure 3 module(s): GV2LE, direct in 600 mm Widefloor-standing enclosure 3 module(s): GV2LE, direct in 600 mm Widewall-mounted enclosure 3 module(s): GV2ME, direct in 600 mm Widefloor-standing enclosure 3 module(s): GV2ME, direct in 600 mm Widewall-mounted enclosure 3 module(s): GV2RTn, direct in 600 mm Widefloor-standing enclosure 3 module(s): GV2RTn, direct in 600 mm Widewall-mounted enclosure 5 module(s): iC120 without earth leakage protection , direct in 600 mm Widefloor-standing enclosure 5 module(s): iC120 without earth leakage protection , direct in 600 mm Widewall-mounted enclosure 3 module(s): IM20 in 600 mm Widefloor-standing enclosure 3 module(s): IM20 in 600 mm Widewall-mounted enclosure 3 module(s): IM20H in 600 mm Widefloor-standing enclosure 3 module(s): IM20H in 600 mm Widewall-mounted enclosure 3 module(s): IM9 in 600 mm Widefloor-standing enclosure 3 module(s): IM9 in 600 mm Widewall-mounted enclosure 3 module(s): IM9-OL in 600 mm Widefloor-standing enclosure 3 module(s): IM9-OL in 600 mm Widewall-mounted enclosure 4 module(s): INS100, direct in 600 mm Widefloor-standing enclosure 4 module(s): INS100, direct in 600 mm Widewall-mounted enclosure 5 module(s): INS100, direct in 600 mm Widefloor-standing enclosure 5 module(s): INS100, direct in 600 mm Widewall-mounted enclosure 4 module(s): INS125, direct in 600 mm Widefloor-standing enclosure 4 module(s): INS125, direct in 600 mm Widewall-mounted enclosure 5 module(s): INS125, direct in 600 mm Widefloor-standing enclosure 5 module(s): INS125, direct in 600 mm Widewall-mounted enclosure 4 module(s): INS160, direct in 600 mm Widefloor-standing enclosure 4 module(s): INS160, direct in 600 mm Widewall-mounted enclosure 5 module(s): INS160, direct in 600 mm Widefloor-standing enclosure 5 module(s): INS160, direct in 600 mm Widewall-mounted enclosure 4 module(s): INS40, direct in 600 mm Widefloor-standing enclosure 4 module(s): INS40, direct in 600 mm Widewall-mounted enclosure 4 module(s): INS63, direct in 600 mm Widefloor-standing enclosure 4 module(s): INS63, direct in 600 mm Widewall-mounted enclosure 2 module(s): measurement device, direct in 600 mm Widefloor-standing enclosure 2 module(s): measurement device, direct in 600 mm Widewall-mounted enclosure 2 module(s): measurement device, direct in 600 mm WidePack enclosure 3 module(s): modular device <= 40 A, direct in 600 mm Widefloor-standing enclosure 3 module(s): modular device <= 40 A, direct in 600 mm Widewall-mounted enclosure 8 module(s): modular device <= 40 A, direct in 600 mm Widefloor-standing enclosure 8 module(s): modular device <= 40 A, direct in 600 mm Widewall-mounted enclosure 6 module(s): modular device <= 40 A, direct in 600 mm WidePack enclosure 6 module(s): modular device, direct in 600 mm WidePack enclosure 4 module(s): modular device, direct in 600 mm Widefloor-standing enclosure 4 module(s): modular device, direct in 600 mm Widewall-mounted enclosure 5 module(s): NG125 without earth leakage protection , direct in 600 mm Widefloor-standing enclosure 5 module(s): NG125 without earth leakage protection , direct in 600 mm Widewall-mounted enclosure 5 module(s): NG125 NA, direct in 600 mm Widefloor-standing enclosure 5 module(s): NG125 NA, direct in 600 mm Widewall-mounted enclosure 3 module(s): RH10, direct in 600 mm Widefloor-standing enclosure 3 module(s): RH10, direct in 600 mm Widewall-mounted enclosure 3 module(s): RH21, direct in 600 mm Widefloor-standing enclosure 3 module(s): RH21, direct in 600 mm Widewall-mounted enclosure 3 module(s): RH99, direct in 600 mm Widefloor-standing enclosure 3 module(s): RH99, direct in 600 mm Widewall-mounted enclosure 5 module(s): C120 with earth leakage protection , direct in 600 mm Widefloor-standing enclosure 5 module(s): C120 with earth leakage protection , direct in 600 mm Widewall-mounted enclosure 5 module(s): iC120 with earth leakage protection , direct in 600 mm Widefloor-standing enclosure 5 module(s): iC120 with earth leakage protection , direct in 600 mm Widewall-mounted enclosure 5 module(s): NG125 with earth leakage protection , direct in 600 mm Widefloor-standing enclosure 5 module(s): NG125 with earth leakage protection , direct in 600 mm Widewall-mounted enclosure
9 mm pitches	48
Quantity per set	Set of 1
Height	52 mm
Width	468 mm
Depth	100 mm
Product weight	0.24 kg
Colour	Natural
Material	Metal

Environment
Standards	IEC 61439-2 IEC 61439-1
Product certifications	ASTA

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.4 cm
Package 1 Width	9.6 cm
Package 1 Length	47.0 cm
Package 1 Weight	253.0 g
Unit Type of Package 2	CAR
Number of Units in Package 2	25
Package 2 Height	14.0 cm
Package 2 Width	48.0 cm
Package 2 Length	50.0 cm
Package 2 Weight	6.87 kg
Unit Type of Package 3	P12
Number of Units in Package 3	300
Package 3 Height	62.0 cm
Package 3 Width	80.0 cm
Package 3 Length	120.0 cm
Package 3 Weight	94.0 kg
