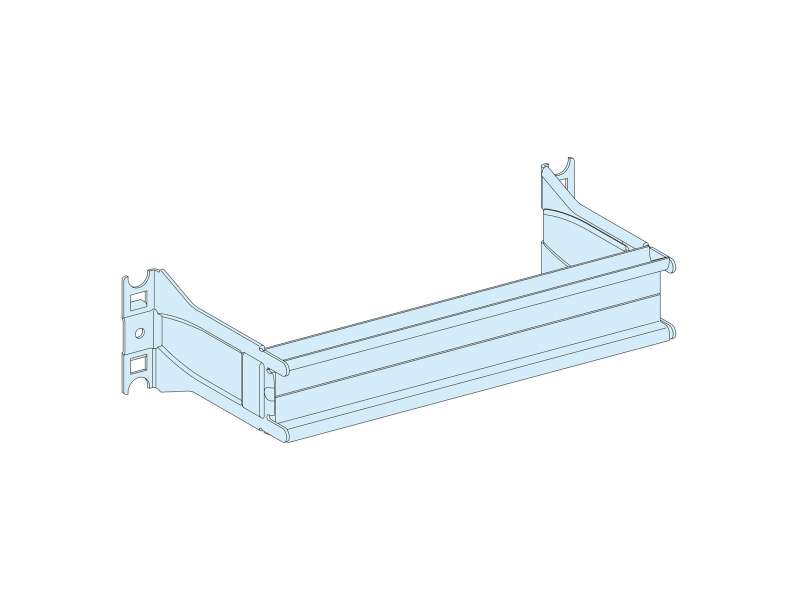

Schneider Electric Š300 instalaciona šina Prisma G; LVS03010

W300 MODULAR DEVICE RAIL PRISMA G...

Brand: Schneider Electric
Product Code: LVS03010
Availability: Check availability

VAT-exclusive price: 563,00

VAT-inclusive price: 675,60

Qnt:

W300 MODULAR DEVICE RAIL PRISMA G

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Rail
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G) duct
Type of rail	Modular
Installed device	Acti 9: fixed C120 without earth leakage protection - control: toggle TeSys: fixed GV2LE TeSys: fixed GV2ME TeSys: fixed GV2RTn Acti 9: fixed iC120 without earth leakage protection - control: toggle ComPact: fixed INS100 - control: direct front rotary handle - vertical installation ComPact: fixed INS160 - control: direct front rotary handle - vertical installation ComPact: fixed INS40 - control: direct front rotary handle - vertical installation ComPact: fixed INS63 - control: direct front rotary handle - vertical installation Acti 9: fixed modular device Multi9: fixed modular device Multi9: fixed NG125 without earth leakage protection - control: toggle Multi9: fixed NG125 NA - control: toggle Acti 9: fixed C120 with earth leakage protection - control: toggle Acti 9: fixed iC120 with earth leakage protection - control: toggle Multi9: fixed NG125 with earth leakage protection - control: toggle ComPact: fixed INS125 - control: direct front rotary handle - vertical installation Acti 9: fixed modular device <= 40 A Multi9: fixed modular device <= 40 A
Poles description	1 x 3P: fixed C120 1 x 4P: fixed C120 1 x 3P: fixed iC120 1 x 4P: fixed iC120 1 x 3P: fixed INS100 vertical installation 1 x 4P: fixed INS100 vertical installation 1 x 3P: fixed INS160 vertical installation 1 x 4P: fixed INS160 vertical installation 1 x 3P: fixed INS40 vertical installation 1 x 4P: fixed INS40 vertical installation 1 x 3P: fixed INS63 vertical installation 1 x 4P: fixed INS63 vertical installation 1 x 3P: fixed NG125 1 x 4P: fixed NG125 1 x 3P: fixed NG125 NA 1 x 4P: fixed NG125 NA 1 x 3P: fixed INS125 vertical installation 1 x 4P: fixed INS125 vertical installation 4 x 3P: fixed GV2LE 4 x 3P: fixed GV2ME 4 x 3P: fixed GV2RTn

Complementary
installation description	Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm
Number of vertical modules [50 mm]	4 module(s): C120 without earth leakage protection , direct in 300 mm Widefloor-standing duct 4 module(s): C120 without earth leakage protection , direct in 300 mm Widewall-mounted duct 3 module(s): GV2LE, direct in 300 mm Widefloor-standing duct 3 module(s): GV2LE, direct in 300 mm Widewall-mounted duct 3 module(s): GV2ME, direct in 300 mm Widefloor-standing duct 3 module(s): GV2ME, direct in 300 mm Widewall-mounted duct 3 module(s): GV2RTn, direct in 300 mm Widefloor-standing duct 3 module(s): GV2RTn, direct in 300 mm Widewall-mounted duct 4 module(s): iC120 without earth leakage protection , direct in 300 mm Widefloor-standing duct 4 module(s): iC120 without earth leakage protection , direct in 300 mm Widewall-mounted duct 4 module(s): INS100, direct in 300 mm Widefloor-standing duct 4 module(s): INS100, direct in 300 mm Widewall-mounted duct 5 module(s): INS100, direct in 300 mm Widefloor-standing duct 5 module(s): INS100, direct in 300 mm Widewall-mounted duct 4 module(s): INS125, direct in 300 mm Widefloor-standing duct 4 module(s): INS125, direct in 300 mm Widewall-mounted duct 5 module(s): INS125, direct in 300 mm Widefloor-standing duct 5 module(s): INS125, direct in 300 mm Widewall-mounted duct 4 module(s): INS160, direct in 300 mm Widefloor-standing duct 4 module(s): INS160, direct in 300 mm Widewall-mounted duct 5 module(s): INS160, direct in 300 mm Widefloor-standing duct 5 module(s): INS160, direct in 300 mm Widewall-mounted duct 4 module(s): INS40, direct in 300 mm Widefloor-standing duct 4 module(s): INS40, direct in 300 mm Widewall-mounted duct 4 module(s): INS63, direct in 300 mm Widefloor-standing duct 4 module(s): INS63, direct in 300 mm Widewall-mounted duct 3 module(s): modular device <= 40 A, direct in 300 mm Widefloor-standing duct 3 module(s): modular device <= 40 A, direct in 300 mm Widewall-mounted duct 4 module(s): modular device, direct in 300 mm Widefloor-standing duct 4 module(s): modular device, direct in 300 mm Widewall-mounted duct 4 module(s): NG125 without earth leakage protection , direct in 300 mm Widefloor-standing duct 4 module(s): NG125 without earth leakage protection , direct in 300 mm Widewall-mounted duct 4 module(s): NG125 NA, direct in 300 mm Widefloor-standing duct 4 module(s): NG125 NA, direct in 300 mm Widewall-mounted duct 4 module(s): C120 with earth leakage protection , direct in 300 mm Widefloor-standing duct 4 module(s): C120 with earth leakage protection , direct in 300 mm Widewall-mounted duct 4 module(s): iC120 with earth leakage protection , direct in 300 mm Widefloor-standing duct 4 module(s): iC120 with earth leakage protection , direct in 300 mm Widewall-mounted duct 4 module(s): NG125 with earth leakage protection , direct in 300 mm Widefloor-standing duct 4 module(s): NG125 with earth leakage protection , direct in 300 mm Widewall-mounted duct
9 mm pitches	20
Quantity per set	Set of 1
Height	52 mm
Width	218 mm
Depth	100 mm
Product weight	0.14 kg
Colour	Natural
Material	Metal

Environment
Standards	IEC 61439-1 IEC 61439-2
Product certifications	ASTA

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.2 cm
Package 1 Width	10.5 cm
Package 1 Length	21.8 cm
Package 1 Weight	169.0 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	13.6 cm
Package 2 Width	21.2 cm
Package 2 Length	25.4 cm
Package 2 Weight	1.861 kg
Unit Type of Package 3	P12
Number of Units in Package 3	300
Package 3 Height	40.0 cm
Package 3 Width	80.0 cm
Package 3 Length	120.0 cm
Package 3 Weight	66.5 kg
